Question: An air-gap parallel plate capacitor of capacitance Co = 20 nF is connected to a battery with voltage V = 12 V. While the

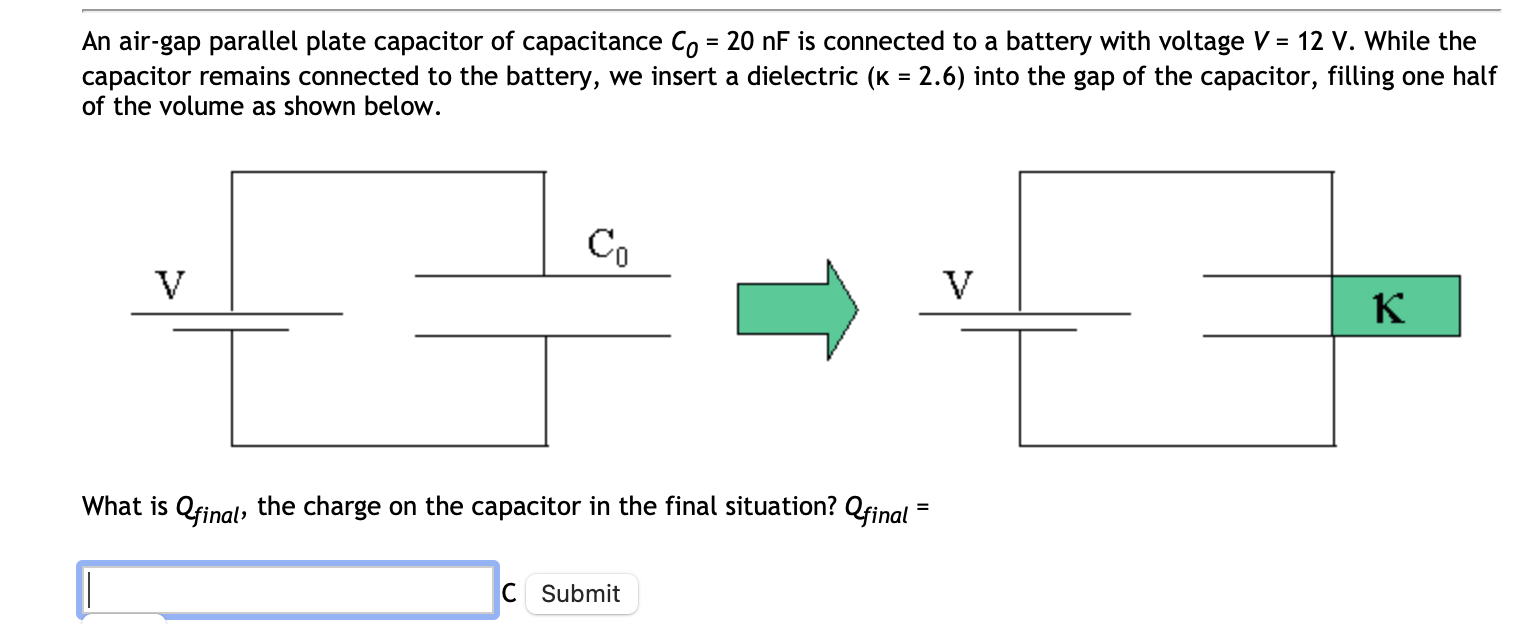

An air-gap parallel plate capacitor of capacitance Co = 20 nF is connected to a battery with voltage V = 12 V. While the capacitor remains connected to the battery, we insert a dielectric (K = 2.6) into the gap of the capacitor, filling one half of the volume as shown below. V Co V What is Qfinal, the charge on the capacitor in the final situation? Qfinal C Submit =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To find the final charge on the capacitor after inserting the dielectric we can ... View full answer
