Question: An incompressible flow field is characterized by the stream function = 3 x 2 y - y 3 ( a ) Sketch a few streamlines

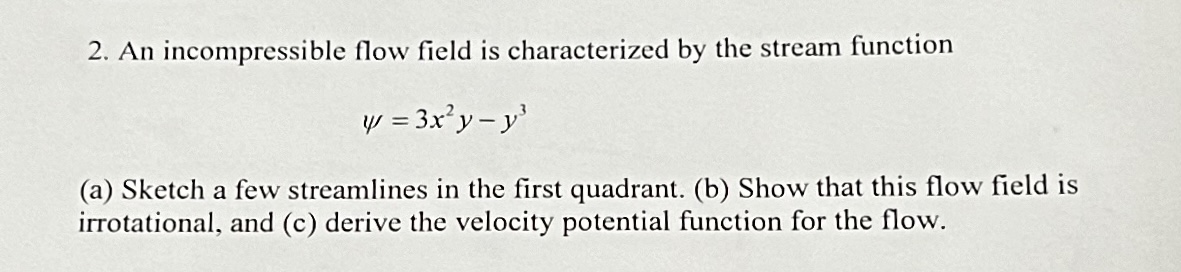

An incompressible flow field is characterized by the stream function
=3x2y-y3
(a) Sketch a few streamlines in the first quadrant. (b) Show that this flow field is
irrotational, and (c) derive the velocity potential function for the flow.
An incompressible flow field is characterized by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
