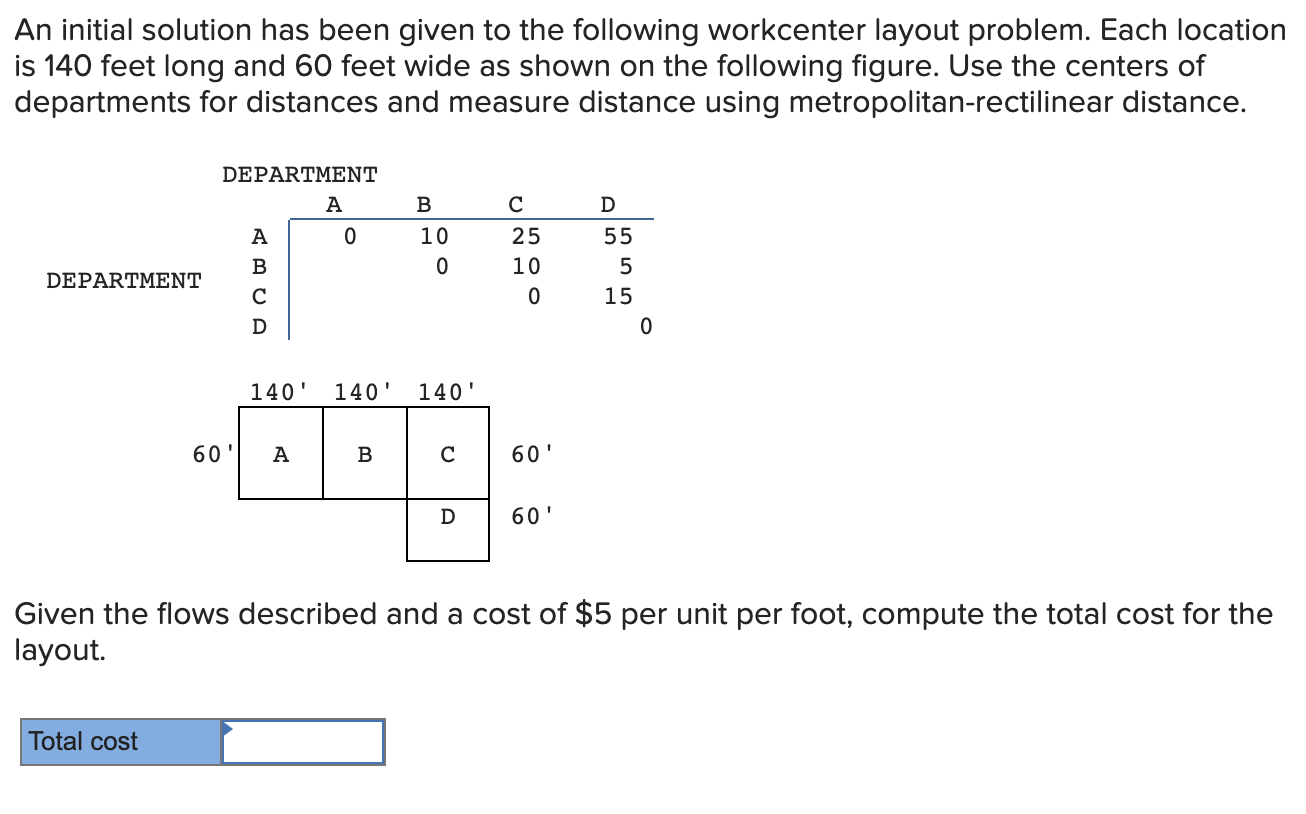

An initial solution has been given to the following workcenter layout problem. Each location is 140 feet long and 60 feet wide as shown on the following figure. Use the centers of departments for distances and measure distance using metropolitan-rectilinear distance.

DEPARTMENT
		A	B	C	D
DEPARTMENT	A	0	10	25	55
	B		0	10	5
	C			0	15
	D				0

	140'	140'	140'
60'	A	B	C	60'
			D	60'

Given the flows described and a cost of $5 per unit per foot, compute the total cost for the layout.

An initial solution has been given to the following workcenter layout problem. Each location is 140 feet long and 60 feet wide as shown on the following figure. Use the centers of departments for distances and measure distance using metropolitan-rectilinear distance. DEPARTMENT A B D A 0 10 0 B 25 10 0 DEPARTMENT 55 5 15 0 D 140' 140' 140' 60' A B 60' D 60' Given the flows described and a cost of $5 per unit per foot, compute the total cost for the layout. Total cost
