Question: An L = 3 3 - ft - long soldier beam is used as a key component of an earth retention system at an excavation

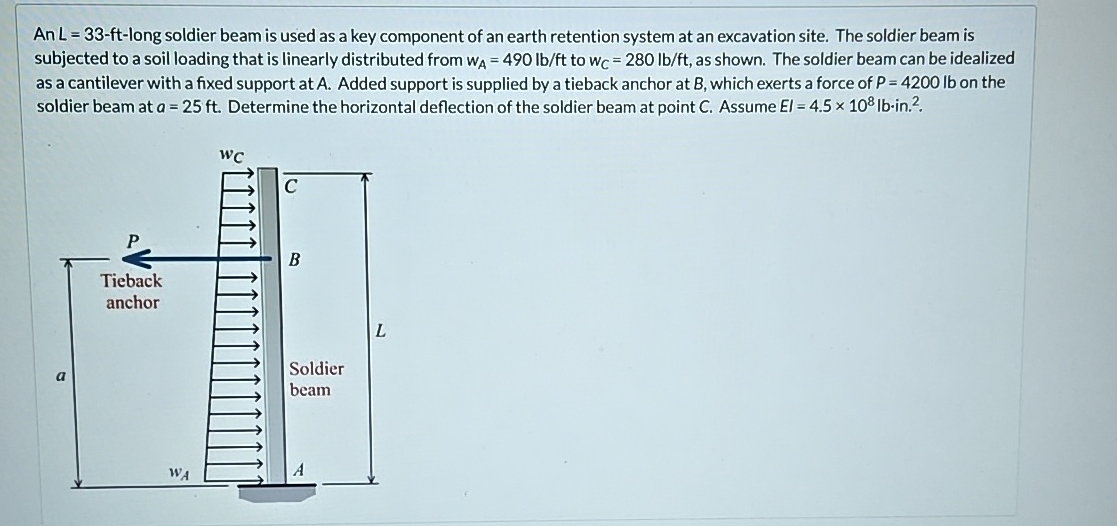

An L=33-ft-long soldier beam is used as a key component of an earth retention system at an excavation site. The soldier beam is subjected to a soil loading that is linearly distributed from wA=490lbft to wC=280lbft, as shown. The soldier beam can be idealized as a cantilever with a fixed support at A. Added support is supplied by a tieback anchor at B, which exerts a force of P=4200lb on the soldier beam at a=25ft. Determine the horizontal deflection of the soldier beam at point C. Assume EI=4.5108Ib*in.?2.
