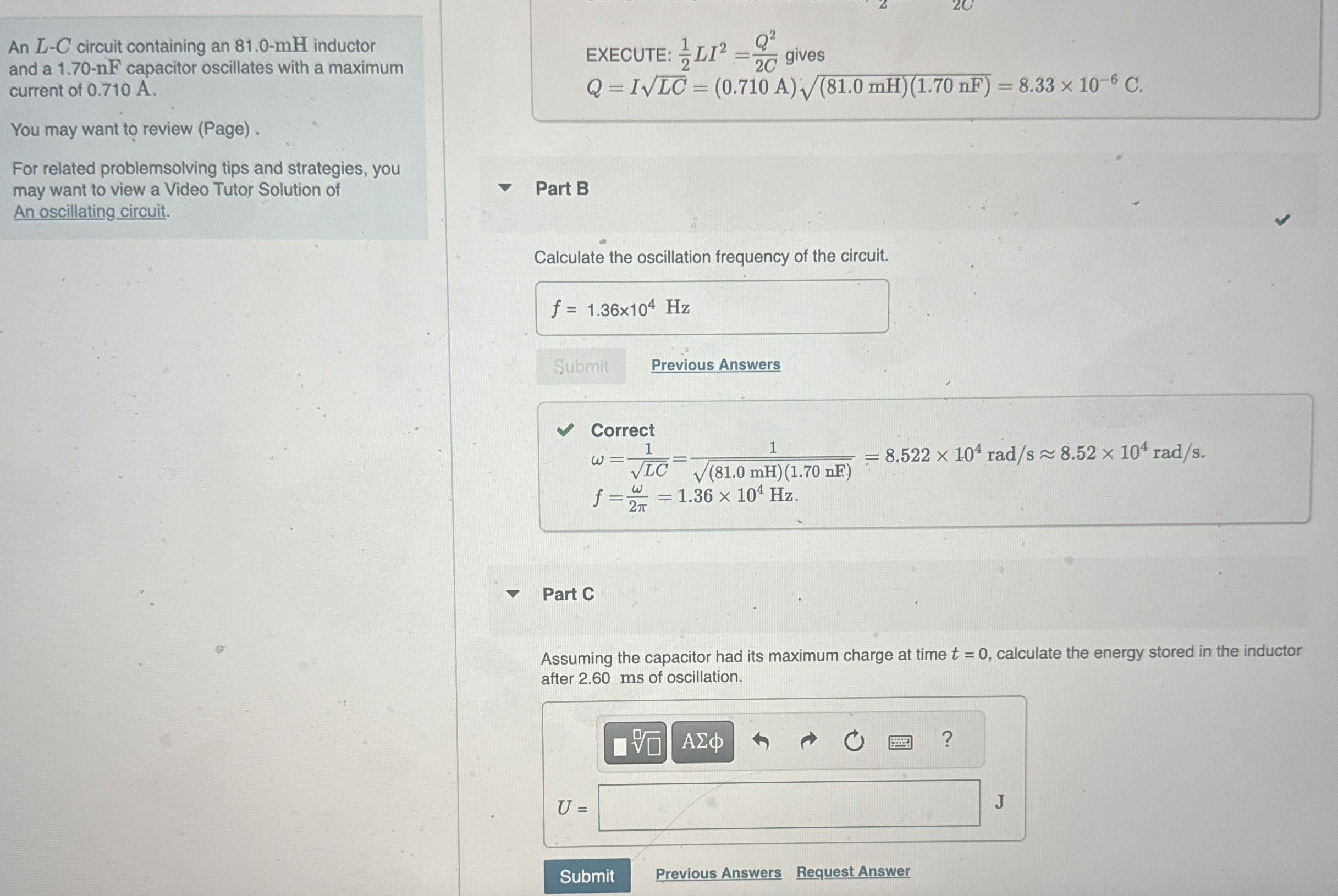

An $L-C$ circuit containing an $81\mathrm{.}0-mH$ inductor and a $1\mathrm{.}70-nF$ capacitor oscillates with a maximum current of $0\mathrm{.}710$ A $.$

You may want to review $($Page$).$

For related problemsolving tips and strategies, you may want to view a Video Tutor Solution of An oscillating circuit.

EXECUTE: $\frac{1}{2}L{I}^2=\frac{Q^2}{2C}$ gives

$Q=I\sqrt[\phantom{2}]{LC}=(0\mathrm{.}710A)$;$\sqrt[\phantom{2}]{(81\mathrm{.}0mH)(1\mathrm{.}70nF)}=8\mathrm{.}33{10}^{-6}C.$

Part B

Calculate the oscillation frequency of the circuit.

Previous Answers

$$ Correct

$=\frac{1}{\sqrt[\phantom{2}]{LC}}=\frac{1}{\sqrt[\phantom{2}]{(81\mathrm{.}0mH)(1\mathrm{.}70nE)}}=8\mathrm{.}522{10}^{4}ra\frac{d}{s}$~~$8\mathrm{.}52{10}^{4}ra\frac{d}{s}.$

$f=\frac{}{2}=1\mathrm{.}36{10}^{4}Hz$

Part C

Assuming the capacitor had its maximum charge at time $t=0,$ calculate the energy stored in the inductor after $2\mathrm{.}60$ ms of oscillation.

$U=$

Previous Answers
