Analysis of the bridge model.

a$.$ Identify load path $-$ explain how the load from midspan reaches the supports.

b$.$ Calculation of reactions to include point load and self$-$weight of your bridge.

c$.$ If your bridge is a truss, analyse member forces near support and at midspan by using the Method of Joints$/$Sections$.($you may consider a single point load$)$

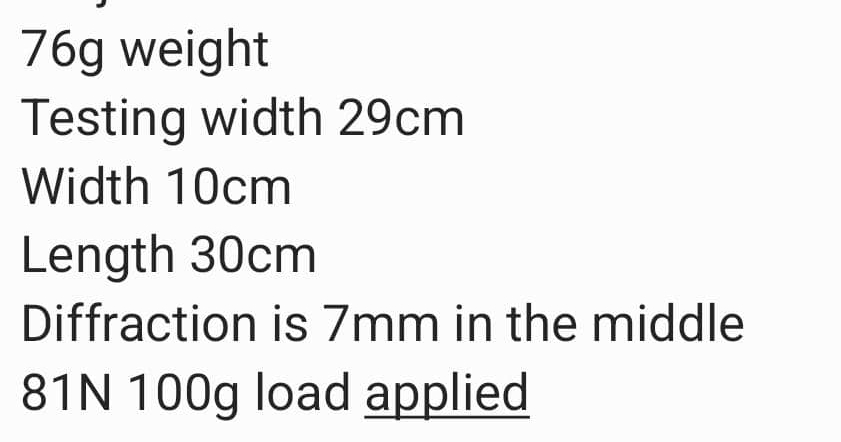

$76g$ weight

Testing width $29cm$

Width $10cm$

Length $30cm$

Diffraction is $7mm$ in the middle

$81N100g$ load applied
