Question: Analyze a typical inner truss for the structure below. Using the unique methods learned in class, find the force in each truss member. Note: Tension

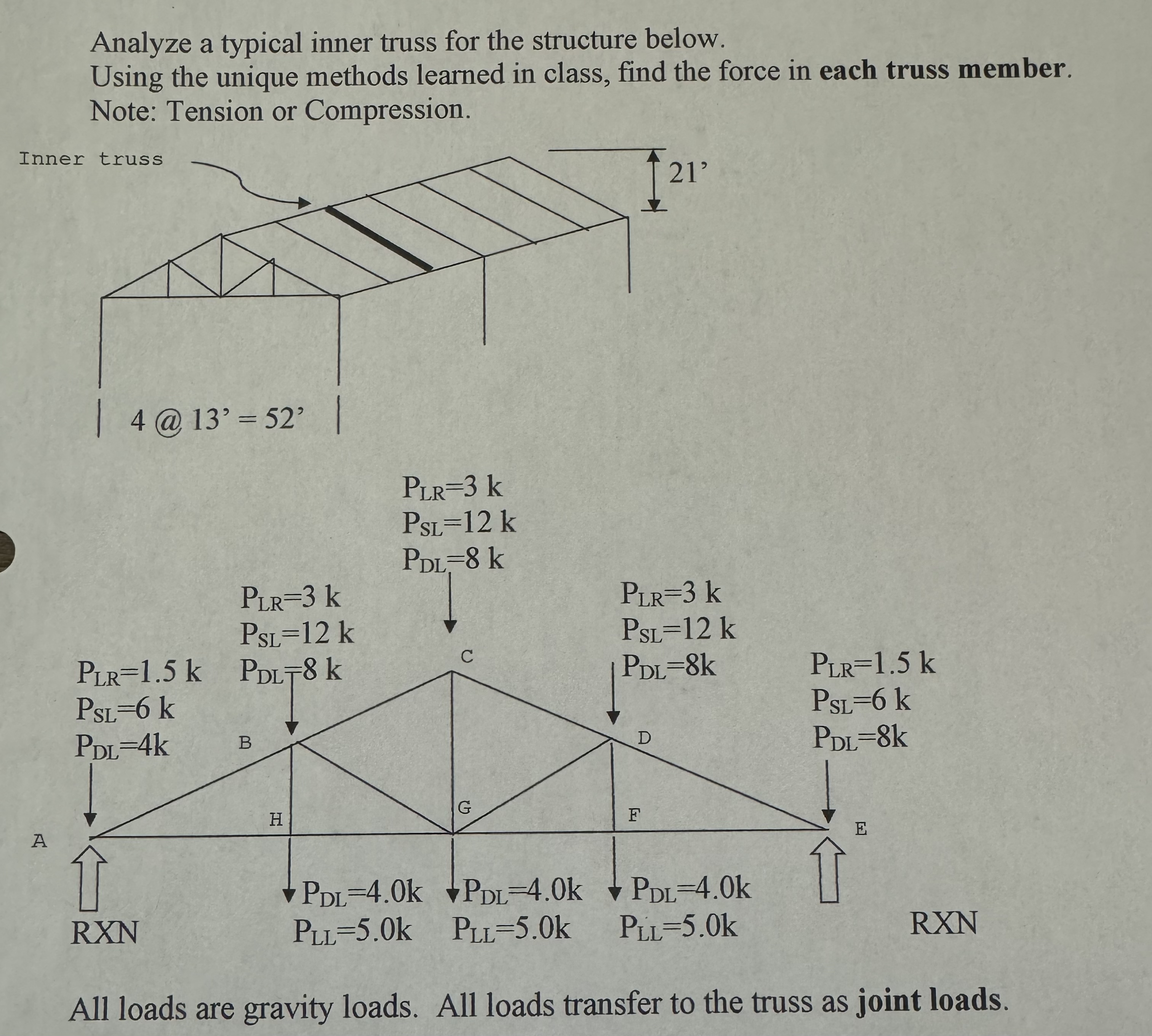

Analyze a typical inner truss for the structure below.
Using the unique methods learned in class, find the force in each truss member.
Note: Tension or Compression.
In
All loads are gravity loads. All loads transfer to the truss as joint loads.
Analyze a typical inner truss for the structure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
