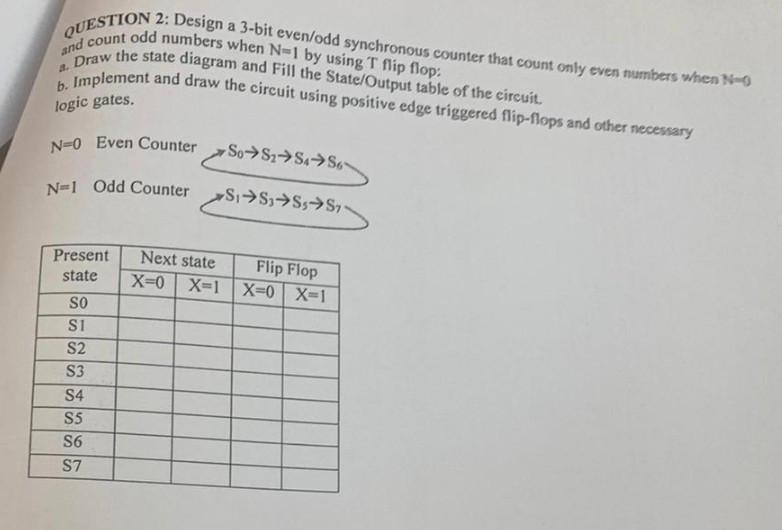

and count odd numbers when N=1 by using T flip flop: QUESTION 2: Design a 3-bit even/odd synchronous counter that count only even numbers when - Draw the state diagram and Fill the State/Output table of the circuit. b. Implement and draw the circuit using positive edge triggered flip-flops and other necessary logic gates. N=0 Even Counter So S2S4S N=1 Odd Counter SiSSsS Present state Next state X=0 X=1 Flip Flop X= 0X=1 SO SI S2 S3 S4 S5 S6 S7
