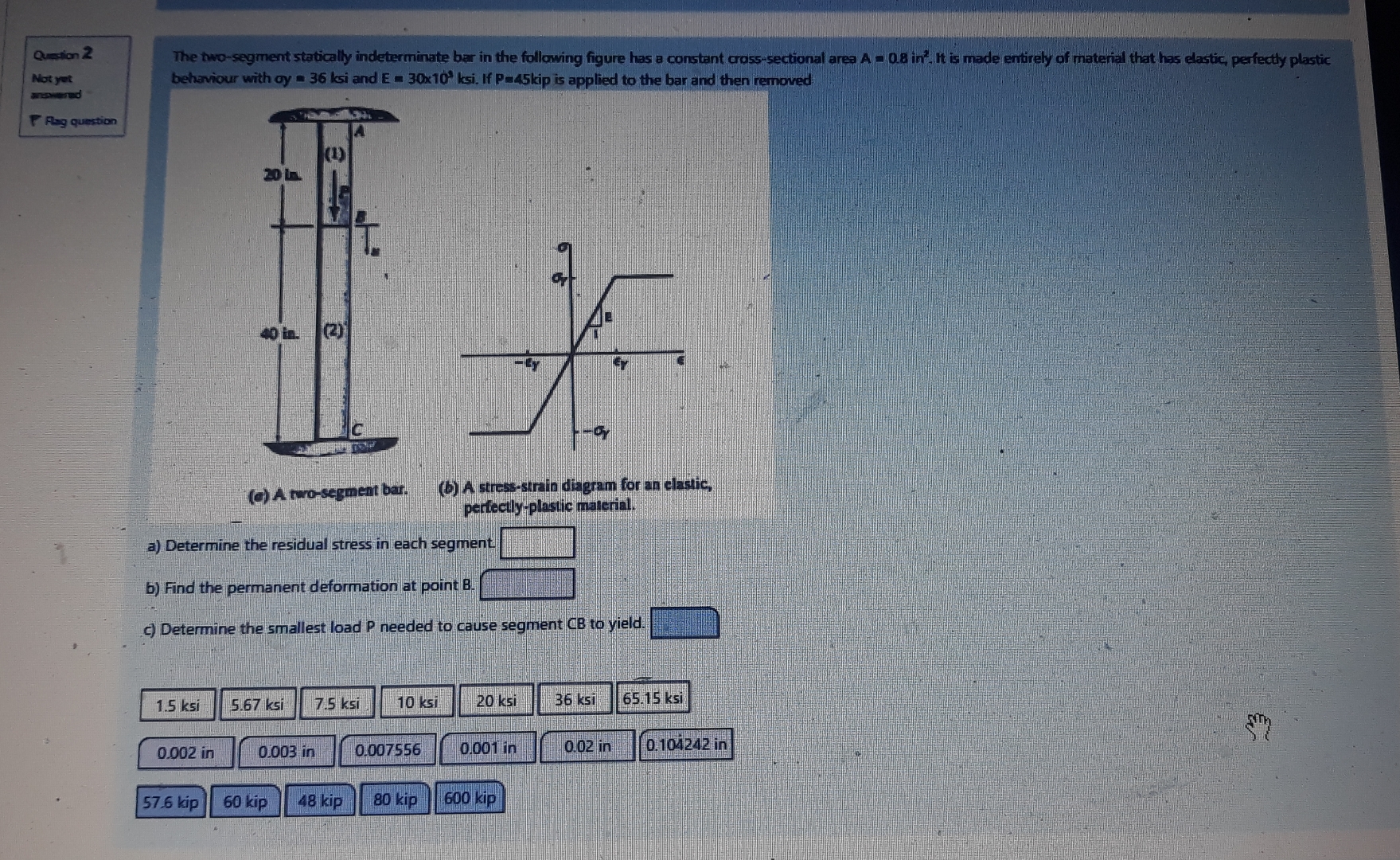

The two$-$segment statically indeterminate bar in the following figure has a constant cross$-$sectional area $A=0\mathrm{.}8i{n}^2.$ It is made entirely of material that has elastic, perfectly plastic behaviour with oy $=36$ksi and $E=3010$ksi. If P$=45$kip is applied to the bar and then removed

$($d$)$ A two$-$segmenivan$*$ periectly$-$plastic material.

a$)$ Determine the residual stress in each segment $$

b$)$ Find the permanent deformation at point $B.$

c$)$ Determine the smallest load $P$ needed to cause segment CB to yield. $$

$1\mathrm{.}5$ ksi

$5\mathrm{.}67$ ksi

$7\mathrm{.}5$ ksi

$10$ ksi

$20$ ksi

$36$ ksi

$65\mathrm{.}15$ ksi

$0\mathrm{.}002$ in

$0\mathrm{.}003$ in

$0\mathrm{.}007556$

$0\mathrm{.}001$ in

$0\mathrm{.}02$ in

$0\mathrm{.}104242$ in

$57\mathrm{.}6$ kip

$60$ kip

$48$ kip

$80$ kip

$600$ kip
