Answer all the questions on the map

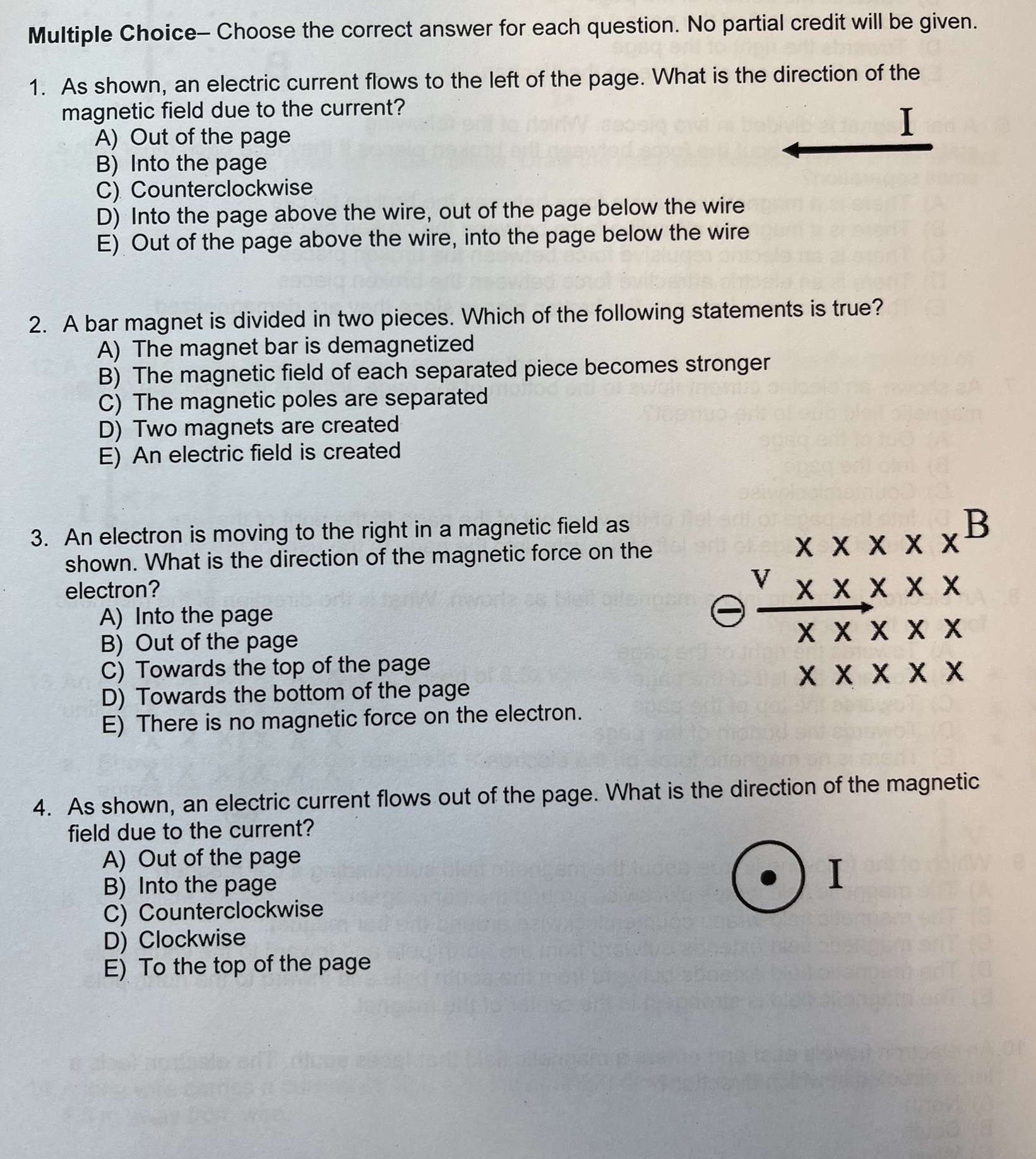

Multiple Choice Choose the correct answer for each question. No partial credit will be given. 1 As shown, an electric current flows to the left of the page. What is the direction of the magnetic field due to the current? A) Out of the page I B) Into the page C C) Counterclockwise D) Into the page above the wire, out of the page below the wire E) Out of the page above the wire, into the page below the wire 2. A bar magnet is divided in two pieces. Which of the following statements is true? A) The magnet bar is demagnetized B) The magnetic field of each separated piece becomes stronger C) The magnetic poles are separated D) Two magnets are created E) An electric field is created 3. An electron is moving to the right in a magnetic field as B shown. What is the direction of the magnetic force on the XXX X X electron? Vv A) Into the page e _x_g(_,x X X B) Out of the page M X' X X C) Towards the top of the page D) Towards the bottom of the page g X X E) There is no magnetic force on the electron. 4. As shown, an electric current flows out of the page. What is the direction of the magnetic field due to the current? A) Out of the page B) Into the page I C) Counterclockwise | : D) Clockwise E) To the top of the page
