Question: Answer ASAP please For the truth table attached, create a K-Map and determine the minimum AND-OR expression | 1 0 1 0 1 x 1

Answer ASAP please

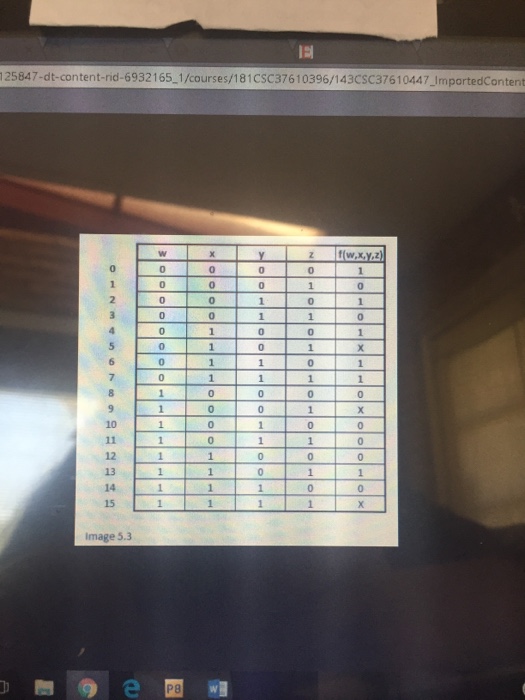

Answer ASAP please For the truth table attached, create a K-Map
For the truth table attached, create a K-Map and determine the minimum AND-OR expression

| 1 0 1 0 1 x 1 1 0 x 0 0 0 1 0 zo_0_0_0_0_0 10 10 - y o 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 x000011-1000011-1 ?0000000011111111 012345678911134

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

For the truth table attached, create a K - Map and determine the minimum AND - OR expression for it . Your answer is only the minimum expression. ( i . e . Do not attach the K - Map )
