Question: Answer ASAP PLEASE Problem # 1 ( 6 0 Points ) The state of stress at a point P in a dry soil
Answer ASAP PLEASE

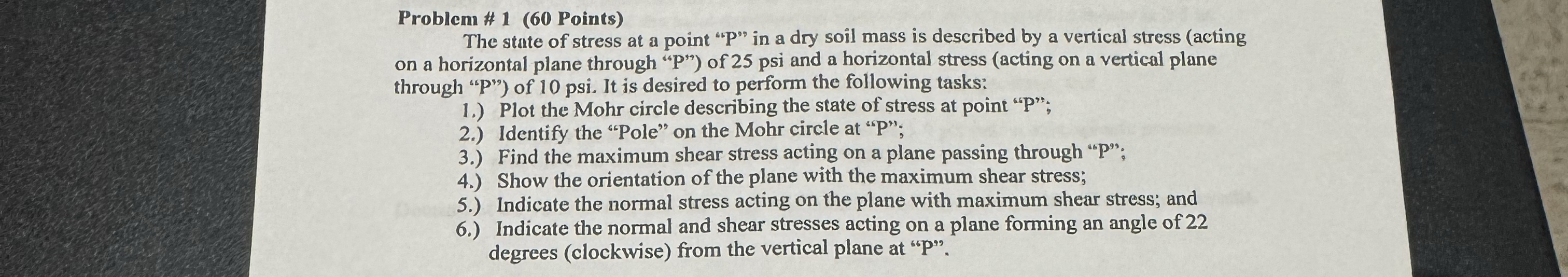

Problem # Points
The state of stress at a point in a dry soil mass is described by a vertical stress acting on a horizontal plane through P of psi and a horizontal stress acting on a vertical plane through of psi. It is desired to perform the following tasks:
Plot the Mohr circle describing the state of stress at point P ;
Identify the "Pole" on the Mohr circle at P;
Find the maximum shear stress acting on a plane passing through :
Show the orientation of the plane with the maximum shear stress;
Indicate the normal stress acting on the plane with maximum shear stress; and
Indicate the normal and shear stresses acting on a plane forming an angle of degrees clockwise from the vertical plane at P
