Question: answer Example 3: A voltage-divider biased common-emitter amplifier is shown in the Figure. Assume Ic = lE and VBE = 0.7 V. (a) Will the

answer

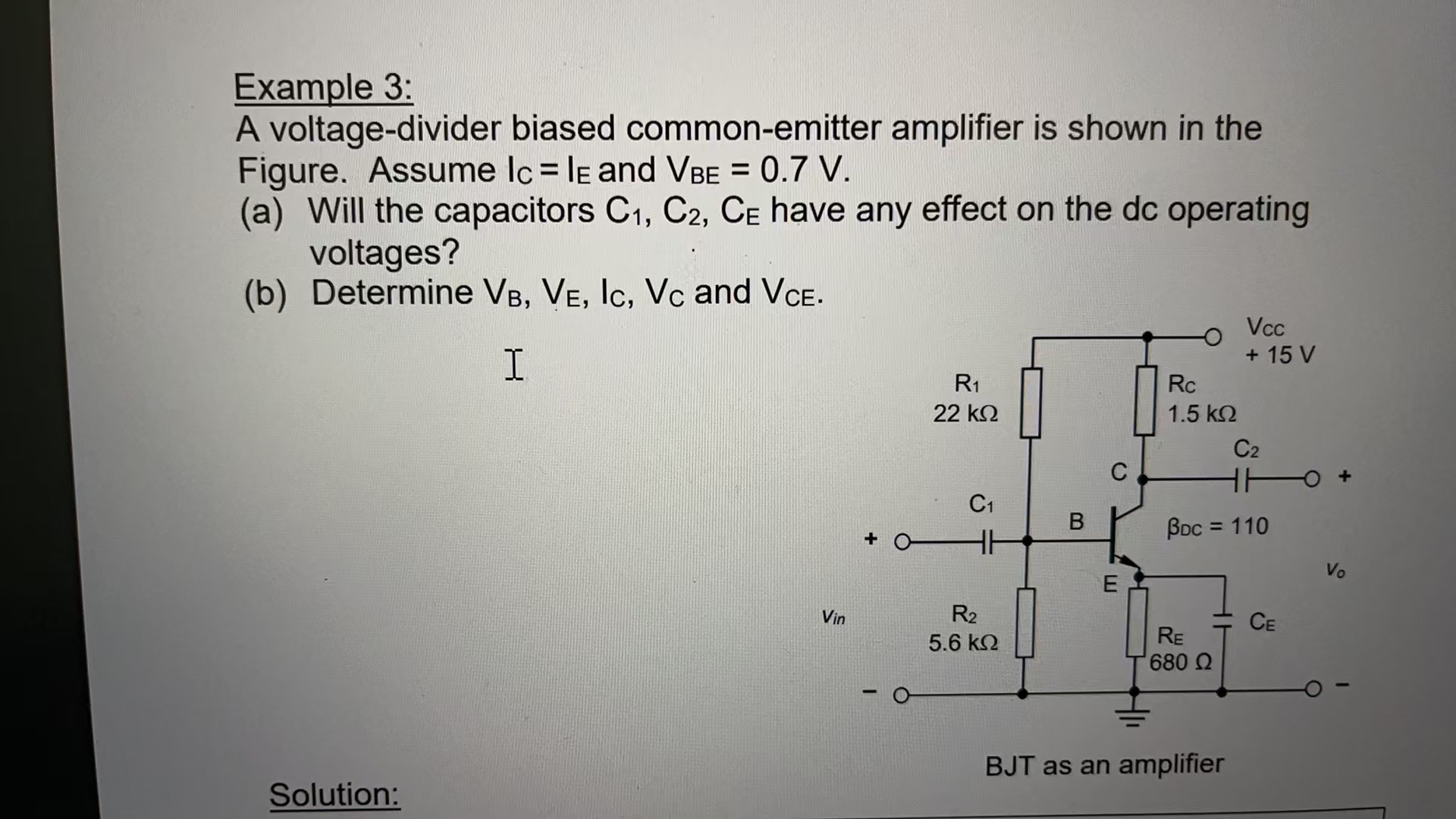

Example 3: A voltage-divider biased common-emitter amplifier is shown in the Figure. Assume Ic = lE and VBE = 0.7 V. (a) Will the capacitors C1, C2, CE have any effect on the dc operating voltages? (b) Determine VB, VE, Ic, Vc and VCE. Vcc + 15 V H R1 RC 22 kQ 1.5 kQ C2 C -O + C1 B + BDC = 110 O- Vo E Vin R2 CE 5.6 kQ RE 680 0 - O- BJT as an amplifier Solution

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
