Question: answer given show how found 3. Gate AB is semi-circular, hinged at point B, and held by a horizontal force P at point A. Determine

answer given show how found answer given show how found 3. Gate AB is semi-circular, hinged at

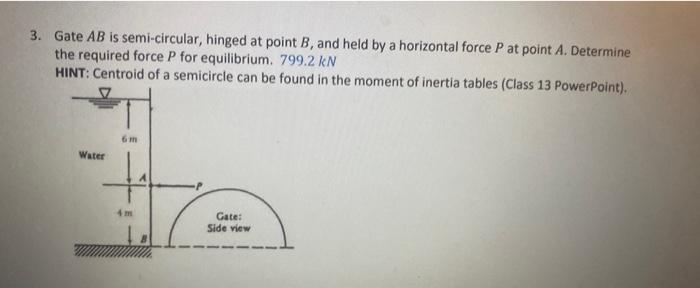

3. Gate AB is semi-circular, hinged at point B, and held by a horizontal force P at point A. Determine the required force P for equilibrium. 799.2kN HINT: Centroid of a semicircle can be found in the moment of inertia tables (Class 13 PowerPoint)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Please check the photo. In the left question you conssider the Mass of the gate. But in the right question you don't consider the weight of the gate. Is there a reason for this? he gate in Fig. E 2 ....

Required information In the given figure, = 2 0 and P = 1 3 6 0 l b . Determine the tension in rope B C . ( Round the final answer to a single decimal place. ) The tension in cable B C is Ib . A 2 2...

The experimental result differs from the assumption. The result shows that the ring oscillator frequencies can be grouped into two groups, where the first group is the high frequency group for the...

Pr 2 : The semicircular plane gate A B is hinged at B and held by the force, F A . The moment of inertia about the centroidal axis is 4 R 4 . Centroid can be found in tables below. ( a ) Determine...

Q4: Gate AB in the figure is semicircular, hinged at B, and held by a horizontal force P at point A Determine the required force P for equilibrium knowing that there is a layer of oil 40 em thick,...

Gate AB in Fig P2.65 is semicircular, hinged at B, and held by a horizontal force P at point A. Determine the required force P for equilibrium. 5 m Water 3 m Gate: Side view
