Question: answer Load 1 Load 2 2 kW (Inductive) Power factor 0.8 lagging 2 kvar Figure 2. 3. Refer to the Figure 2. If the voltage

answer

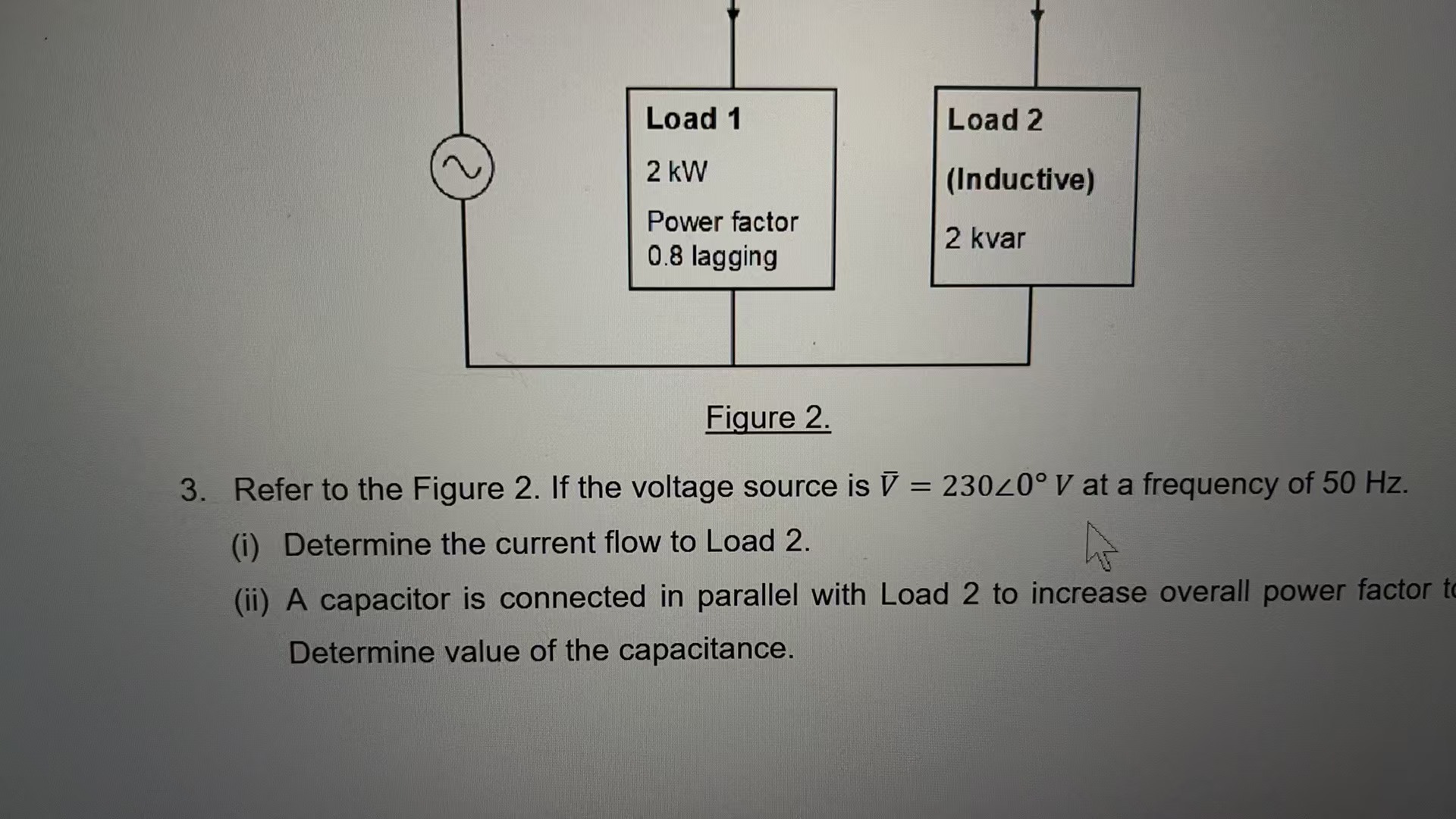

Load 1 Load 2 2 kW (Inductive) Power factor 0.8 lagging 2 kvar Figure 2. 3. Refer to the Figure 2. If the voltage source is V = 23040 V at a frequency of 50 Hz. (i) Determine the current flow to Load 2. (ii) A capacitor is connected in parallel with Load 2 to increase overall power factor to Determine value of the capacitance

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
