Question: answer?? Question 7 With CNC repetitive cycle programming, what does the P stand for in the code G71P_Q_U__W_DS F__; (rough turning and boring repetitive cycle)

answer??

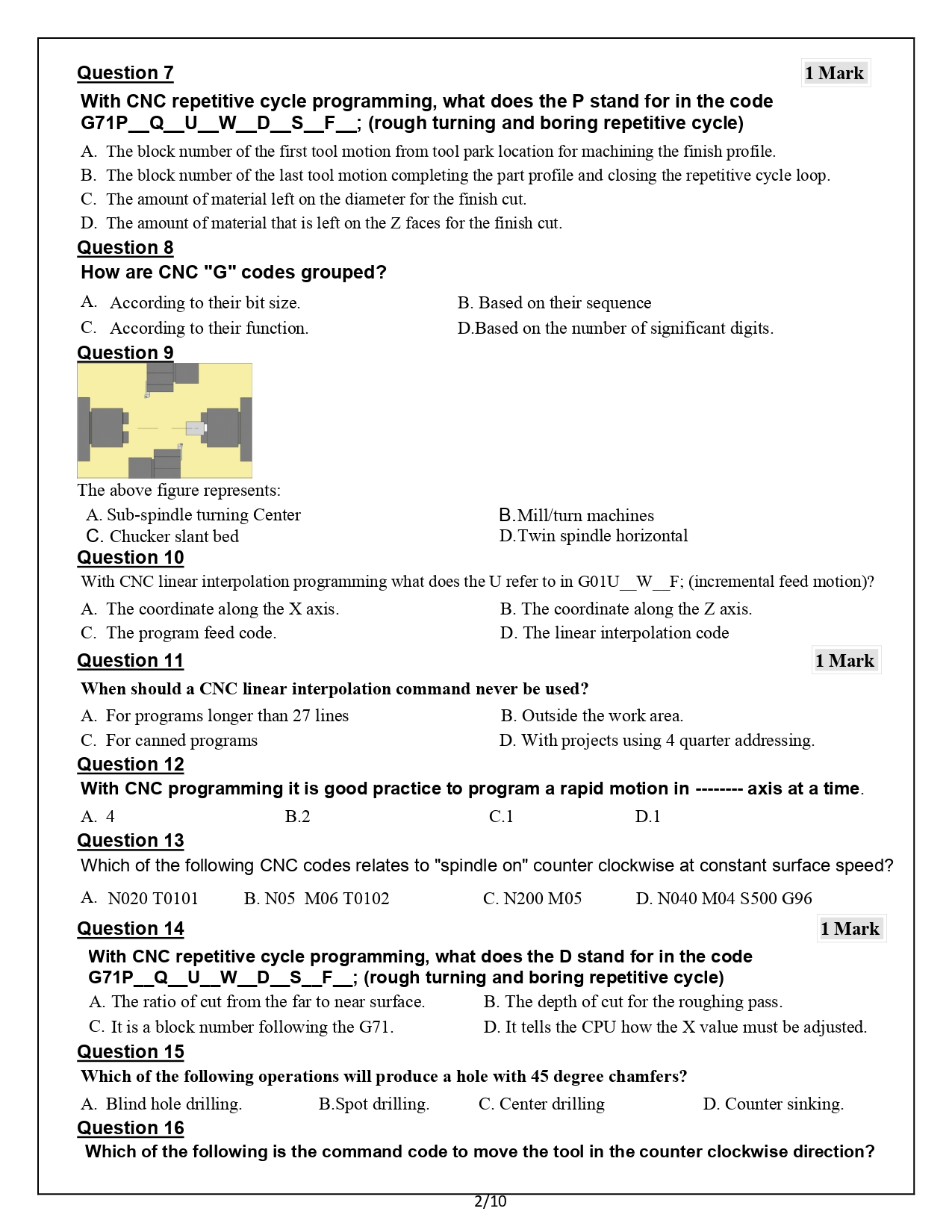

Question 7 With CNC repetitive cycle programming, what does the P stand for in the code G71P_Q_U__W_D__S__ F__; (rough turning and boring repetitive cycle) . The block number of the first tool motion from tool park location for machining the finish profile. . The block number of the last tool motion completing the part profile and closing the repetitive cycle loop. . The amount of material left on the diameter for the finish cut. . The amount of material that is left on the Z faces for the finish cut. Question 8 How are CNC "G" codes grouped? A. According to their bit size. B. Based on their sequence C. According to their function. D.Based on the number of significant digits. Question 9 .. The above figure represents: A. Sub-spindle turning Center B.Mill/turn machines C. Chucker slant bed D.Twin spindle horizontal Question 10 With CNC linear interpolation programming what does the U refer to in GO1U W __F; (incremental feed motion)? A. The coordinate along the X axis. B. The coordinate along the Z axis. C. The program feed code. D. The linear interpolation code Question 11 'When should a CNC linear interpolation command never be used? A. For programs longer than 27 lines B. Outside the work area. C. For canned programs D. With projects using 4 quarter addressing. Question 12 With CNC programming it is good practice to program a rapid motion in axis at a time. A4 B.2 C.l1 D1 Question 13 Which of the following CNC codes relates to "spindle on" counter clockwise at constant surface speed? A. N020 T0101 B.NO05 MO06 T0102 C. N200 MO05 D. N040 M04 S500 G96 Question 14 1 Mark With CNC repetitive cycle programming, what does the D stand for in the code G71P__Q__U__W_ D__S__F__; (rough turning and boring repetitive cycle) A. The ratio of cut from the far to near surface. B. The depth of cut for the roughing pass. C. Tt is a block number following the G71. D. It tells the CPU how the X value must be adjusted. Question 15 'Which of the following operations will produce a hole with 45 degree chamfers? A. Blind hole drilling. B.Spot drilling. C. Center drilling D. Counter sinking,. Question 16 Which of the following is the command code to move the tool in the counter clockwise direction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
