Question: Answer the question in the picture. Q4: a) Consider a unity feedback system with a forward transfer function is: 600 G(s)= $(s +6) Design a

Answer the question in the picture. Q4: a) Consider a unity

Answer the question in the picture.

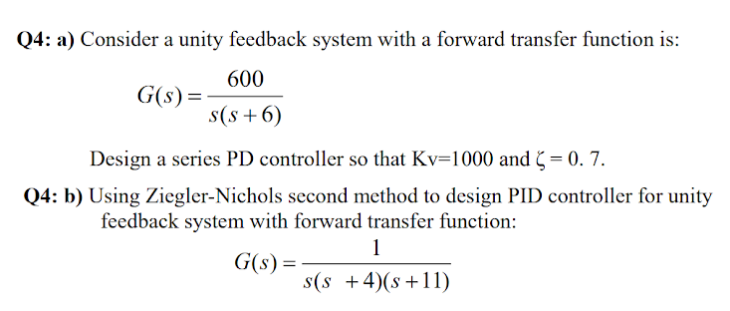

Q4: a) Consider a unity feedback system with a forward transfer function is: 600 G(s)= $(s +6) Design a series PD controller so that Kv=1000 and 6 = 0.7. Q4: b) Using Ziegler-Nichols second method to design PID controller for unity feedback system with forward transfer function: 1 G(S) = s(s+4)(+11)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
