Question: AO rotates as shownbelowat constant speed. When AO forms a 2 0 degree angle with the horizontal, determine the velocity of roller B . Ignore

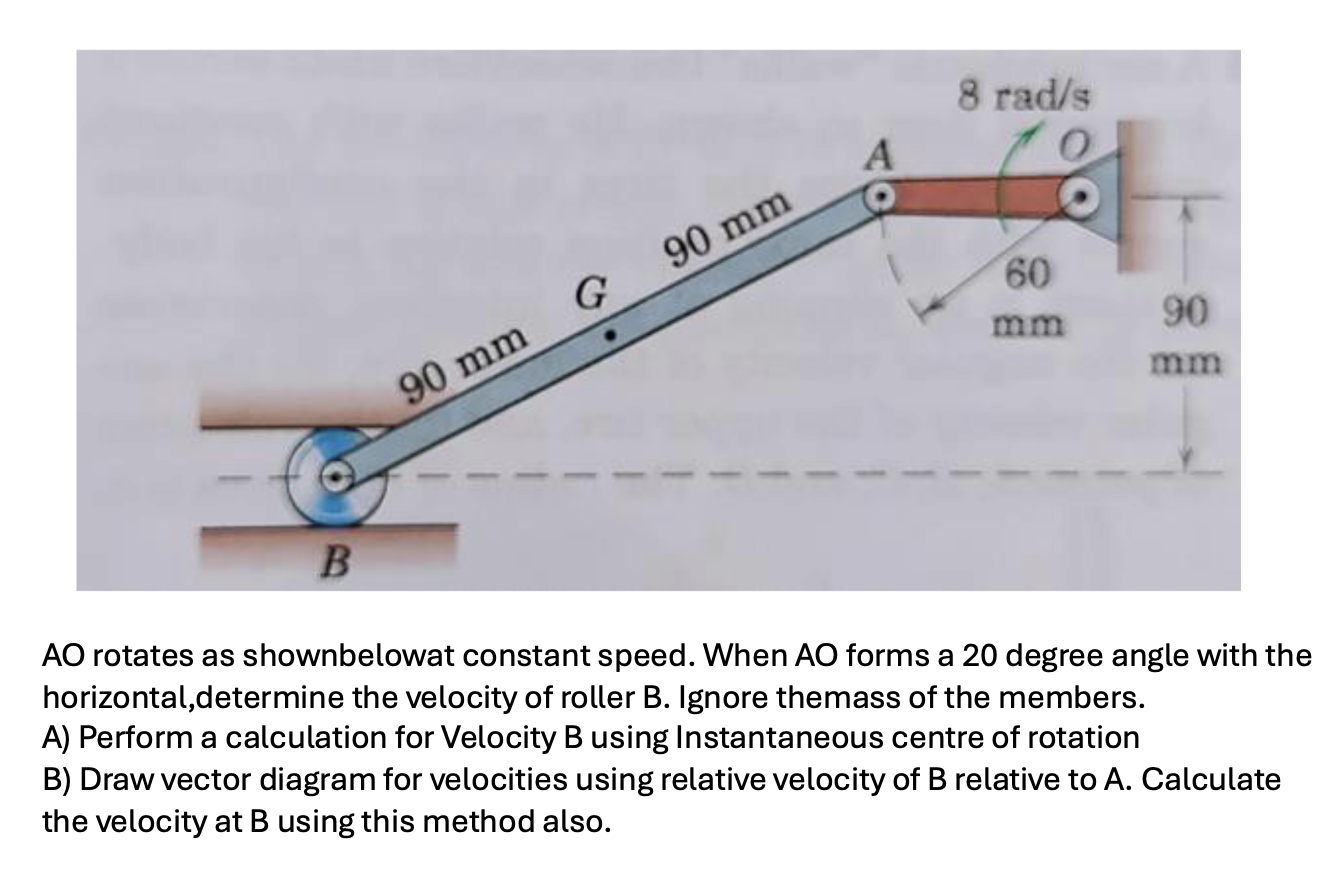

AO rotates as shownbelowat constant speed. When AO forms a 20 degree angle with the horizontal, determine the velocity of roller B. Ignore themass of the members.
A) Perform a calculation for Velocity B using Instantaneous centre of rotation
B) Draw vector diagram for velocities using relative velocity of \( B \) relative to \( A \). Calculate the velocity at \( B \) using this method also.
AO rotates as shownbelowat constant speed. When

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
