Application #1

Using ArrayDeque class from java.util write a program that implements a special stack that has a finite size but allows an unlimited number of push operations. If the stack is full when a push occurs, the stack makes room for the new entry by deleting the entry at its bottom. A browser that maintains a limited history could use this kind of stack. Implement this stack by using a deque data structure implemented by ArrayDeque class.

Please note that capacity should be declared as final, DEFAULT_CAPACITY should be set to 20. To add, remove, and retrieve elements utilize ArrayDeque methods: push, pop, peek, removeLast.

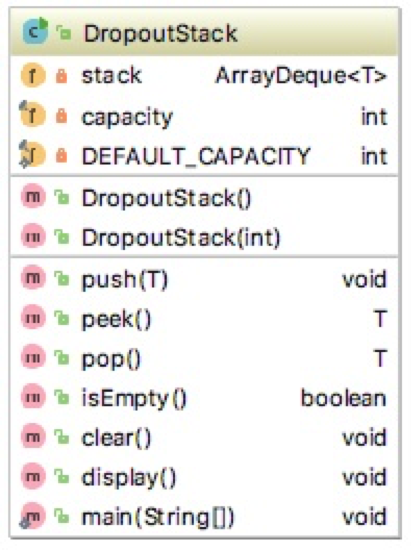

UML DIAGRAM:

Please note two methods added for testing: main (see the sample run) and display.

Implement all methods defined in the UML Diagram.

public class DropoutStack { // TODO Project 1  // IMPLEMENT ALL THE METHODS DEFINED IN THE UML DIAGRAM // push method should utilize removeLast() // UNCOMMENT THE display and main METHODS WHEN READY FOR TESTING /**  * METHOD display implemented for debugging purposes  */  public void display() { if (isEmpty()) System.out.println("The stack is empty"); else System.out.println(Arrays.toString(this.stack.toArray())); } public static void main(String args[]) { System.out.println("************** TESTING DROPOUT STACK ************** "); DropoutStack dropoutStack = new DropoutStack(); System.out.println("----> Adding 20 items to empty stack of capacity of 20"); for (int i = 0; i out.println("----> The content of the stack is:"); dropoutStack.display(); System.out.println("----> The top of the stack is: " + dropoutStack.peek()); System.out.println(" ----> Adding 5 more items to full stack"); for (int i = 20; i out.println("push " + i); dropoutStack.push(i); } System.out.println("----> The content of the stack is:"); dropoutStack.display(); System.out.println("----> The top of the stack is: " + dropoutStack.peek()); System.out.println(" ----> Removing all elements from the stack:"); while (!dropoutStack.isEmpty()) { System.out.println("----> pop " + dropoutStack.pop()); } dropoutStack.display(); System.out.println("----> The top of the stack is: " + dropoutStack.peek()); System.out.println(" ----> Trying to pop from the empty stack"); System.out.println("----> Got back " + dropoutStack.pop()); System.out.println(" ----> Trying to peek at the top of the empty stack"); System.out.println("----> Got back " + dropoutStack.peek()); System.out.println(" ----> Adding 22 items to empty stack of capacity of 20"); for (int i = 0; i out.println("----> The content of the stack is:"); dropoutStack.display(); System.out.println(" ----> Clearing the stack with the clear method"); dropoutStack.clear(); System.out.println("----> The content of the stack is:"); dropoutStack.display(); } }

SAMPLE RUN:

************** TESTING DROPOUT STACK **************

----> Adding 20 items to empty stack of capacity of 20

----> The content of the stack is:

[19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1, 0]

----> The top of the stack is: 19

----> Adding 5 more items to full stack

push 20

push 21

push 22

push 23

push 24

----> The content of the stack is:

[24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5]

----> The top of the stack is: 24

----> Removing all elements from the stack:

----> pop 24

----> pop 23

----> pop 22

----> pop 21

----> pop 20

----> pop 19

----> pop 18

----> pop 17

----> pop 16

----> pop 15

----> pop 14

----> pop 13

----> pop 12

----> pop 11

----> pop 10

----> pop 9

----> pop 8

----> pop 7

----> pop 6

----> pop 5

The stack is empty

----> The top of the stack is: null

----> Trying to pop from the empty stack

----> Got back null

----> Trying to peek at the top of the empty stack

----> Got back null

----> Adding 22 items to empty stack of capacity of 20

----> The content of the stack is:

[21, 20, 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2]

----> Clearing the stack with the clear method

----> The content of the stack is:

The stack is empty

DropoutStack | e stack ArrayDeque int int capacity DEFAULT-CAPACITY m DropoutStack(0 mDropoutStack(int) m push(T) mpeek) m pop void mclear() mdisplay() boolean void void void main(String[])
