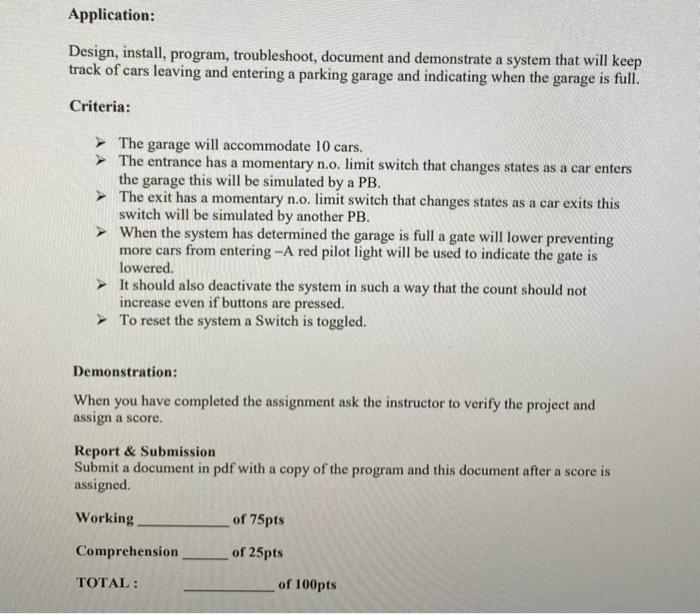

Application: Design, install, program, troubleshoot, document and demonstrate a system that will keep track of cars leaving and entering a parking garage and indicating when the garage is full. Criteria: The garage will accommodate 10 cars. The entrance has a momentary n.o. limit switch that changes states as a car enters the garage this will be simulated by a PB. The exit has a momentary n.o. limit switch that changes states as a car exits this switch will be simulated by another PB. When the system has determined the garage is full a gate will lower preventing more cars from entering -A red pilot light will be used to indicate the gate is lowered. It should also deactivate the system in such a way that the count should not increase even if buttons are pressed. To reset the system a Switch is toggled. Demonstration: When you have completed the assignment ask the instructor to verify the project and assign a score Report & Submission Submit a document in pdf with a copy of the program and this document after a score is assigned Working of 75pts Comprehension of 25pts TOTAL: of 100pts In order to complete Lab 1 you will need to refer to the information in the text In Chapter 8 on Counters. Also, you will need to use the 1/0 simulator like we used in class to simulate the inputs and outputs of the program LAB 1 Parking Garagenda * Previous Application: Design, install, program, troubleshoot, document and demonstrate a system that will keep track of cars leaving and entering a parking garage and indicating when the garage is full. Criteria: The garage will accommodate 10 cars. The entrance has a momentary n.o. limit switch that changes states as a car enters the garage this will be simulated by a PB. The exit has a momentary n.o. limit switch that changes states as a car exits this switch will be simulated by another PB. When the system has determined the garage is full a gate will lower preventing more cars from entering -A red pilot light will be used to indicate the gate is lowered. It should also deactivate the system in such a way that the count should not increase even if buttons are pressed. To reset the system a Switch is toggled. Demonstration: When you have completed the assignment ask the instructor to verify the project and assign a score Report & Submission Submit a document in pdf with a copy of the program and this document after a score is assigned Working of 75pts Comprehension of 25pts TOTAL: of 100pts In order to complete Lab 1 you will need to refer to the information in the text In Chapter 8 on Counters. Also, you will need to use the 1/0 simulator like we used in class to simulate the inputs and outputs of the program LAB 1 Parking Garagenda * Previous
