Question: ARCH 3 1 9 - GENERAL STRUCTURES - ASSIGNMENT # 4 Reference: Lecture Notes & Onouye Textbook - Chapter Four - Load Tracing Construct a

ARCH 319- GENERAL STRUCTURES - ASSIGNMENT #4
Reference: Lecture Notes & Onouye Textbook - Chapter Four - Load Tracing

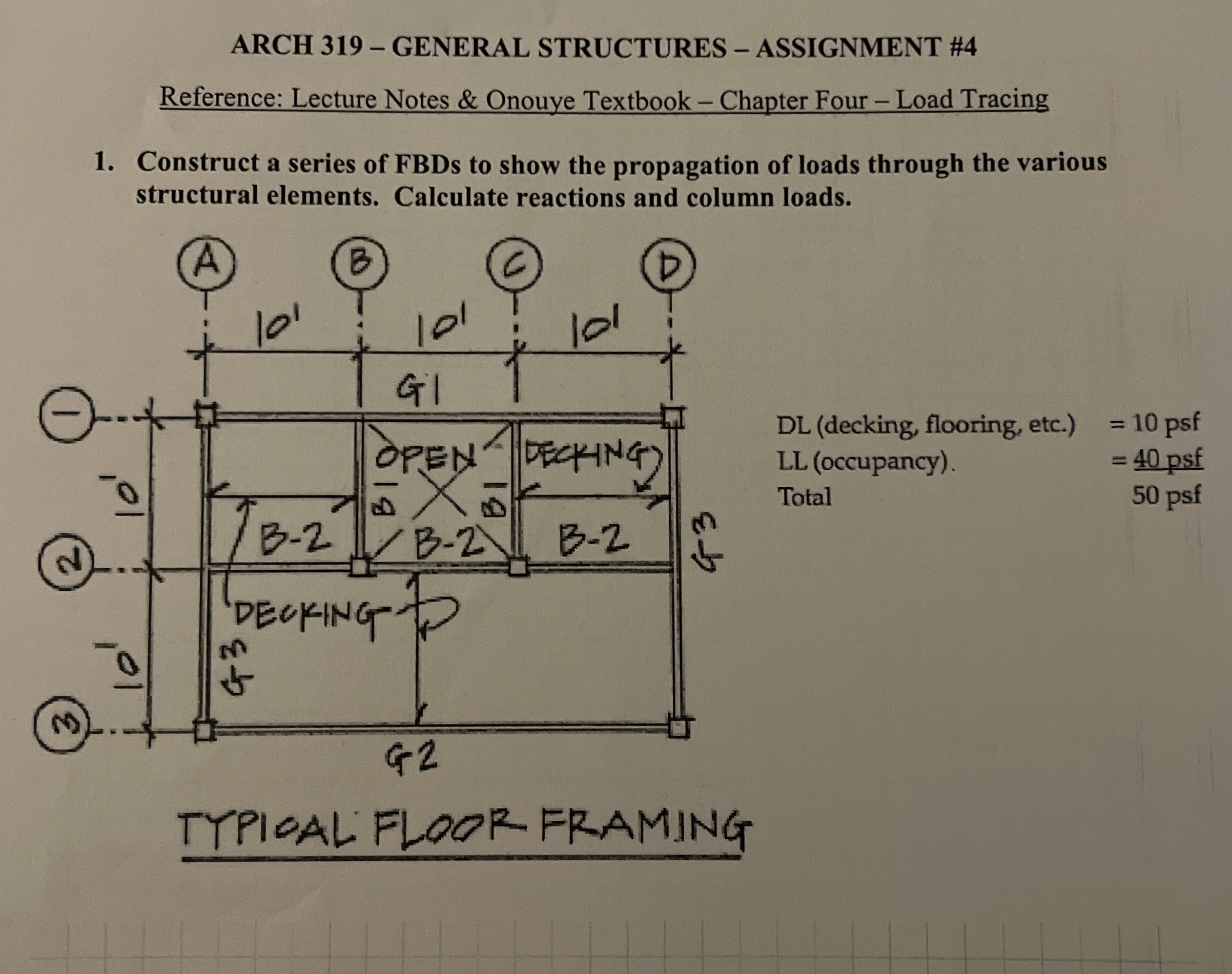

Construct a series of FBDs to show the propagation of loads through the various structural elements. Calculate reactions and column loads.
DL(decking, flooring, etc.)=10psf
LL(occupancy)=40psf50psf
Total 50
ARCH 3 1 9 - GENERAL STRUCTURES - ASSIGNMENT # 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
