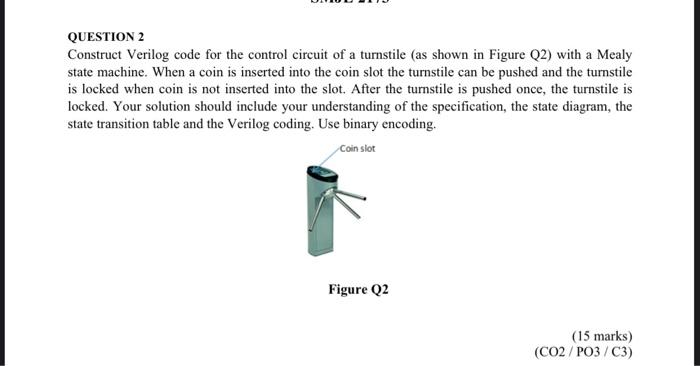

QUESTION 2 Construct Verilog code for the control circuit of a turnstile (as shown in Figure Q2) with a Mealy state machine. When a coin is inserted into the coin slot the turnstile can be pushed and the turnstile is locked when coin is not inserted into the slot. After the turnstile is pushed once, the turnstile is locked. Your solution should include your understanding of the specification, the state diagram, the state transition table and the Verilog coding. Use binary encoding. Coin slot Figure Q2 (15 marks) (CO2/PO3/C3)
