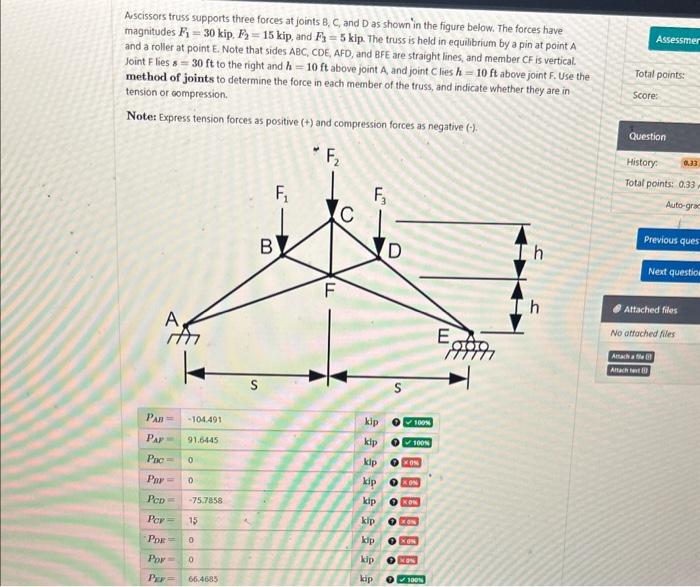

Ascissors truss supports three forces at joints B, C, and D as shown in the figure below. The forces have magnitudes Fi 30 kip. F-15 kip, and F-5 kip. The truss is held in equilibrium by a pin at point A and a roller at point E. Note that sides ABC, CDE, AFD, and BFE are straight lines, and member CF is vertical. Joint F lies s 30 ft to the right and h=10 ft above joint A, and joint C lies h 10 ft above joint F. Use the method of joints to determine the force in each member of the truss, and indicate whether they are in tension or compression. Note: Express tension forces as positive (+) and compression forces as negative (-). Assessment Total points: Score: S B F F F D h F E S PAB= -104.491 PAP- 91.6445 Pac= 0 Par- 0 PCD= -75.7858 Por= 15 PDE= 0 Por 0 5 5 5 5 5 5 5 5 kip 100% kip 100% 00 900 PEF= kip 100% 66.4685 Question History 0.33 Total points: 0.33- Auto-grac I h Previous ques Next question Attached files No attached files Attach a file Attach text
