Asking for assistance also please use the screenshots code so I can have a better understanding I appreciate it

also do the SmartHome class aswell

This lab aims to reinforce the concept of inheritance. The specific skills to be covered are: 1. Extending a class to create a new class 2. Overriding methods 3. Writing constructors in a subclass The lab also aims to demonstrate the power of inheritance in managing collections.

THE PROBLEM . The internet of things, or IoT, is a system of interrelated computing devices, mechanical and digital machines, objects, animals or people that are provided with unique identifiers (UIDs) and the ability to transfer data over a network without requiring human-to-human or human-to-computer interaction. IoT concepts have enabled actualization of SmartHome, which allow common devices within a home to incorporate processing and communication capability, and together these devices are should be able to increase the satisfaction of the user. Examples of IoT devices that could be in a home could include a refrigerators, a light bulbs and smart phones. For this lab you will create a set of classes that can model a smart home, using the concepts of inheritance and aggregation.

**IN-LAB MARKING CRITERIA (PLEASE REVIEW BEFORE STARTING) **

Criterion Mark(s) Explanation of the implications of using static attributes and methods. 1 Correct implementation of constructors (super class and sub class) 1 Identification of use of inherited attributes and methods 1 Describe the implication of overriding 1 Program readability good coding style 1 A PENALTY OF 1 MARK WILL BE APPLIED FOR ANY OF THE FOLLOWING: Shadowing

**LAB EXERCISES **

Your tasks for this lab include a. Writing classes InternetThing, SmartPhone and LightBulb b. Editing in the SmartHome class to refer to newly defined classes c. Editing the Refrigerator class to override the getPowerUse method.

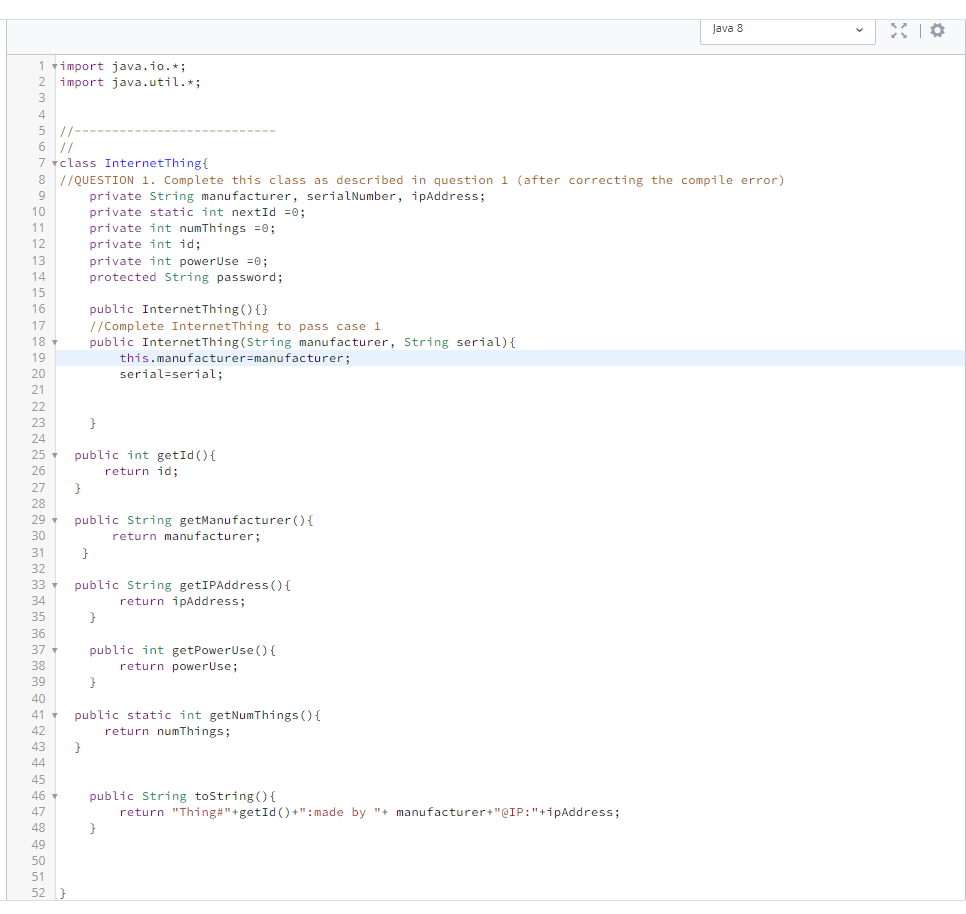

Write code for the InternetThing class to complete: a. A constructor that accepts a manufacturer and a serial number as its parameter. This constructor performs the following actions: i Store the serial number as a string ii Set a unique id number as an integer(hint- use the nextId). iii Set the IP address to the value 192.168.0.+idnumber iv Set a local representation of a the power used in mW to the integer 1. v Set the password to admin. vi Prints the value Created + the result of the toString() method after assigning all instance data. vii Increment the number of things on record. b. Accessors for all private variables Ensure the accessors for id, password and powerUse are named getId(), getPassword() and getPowerUse() c. A method setPassword that accepts a string argument and sets the instance password to the argument. All instance variables, except the password, should be private. The password should be protected.

In class SmartHome, method addThing, Create a refrigerator object by calling the relevant constructor with the following arguments (in order... manufacturer, serialNo, basePower, powerRating, capacity) Set the value in array things, at the position that matches the ID of the refrigerator ie (rf.getId()), to the refrigerator object.

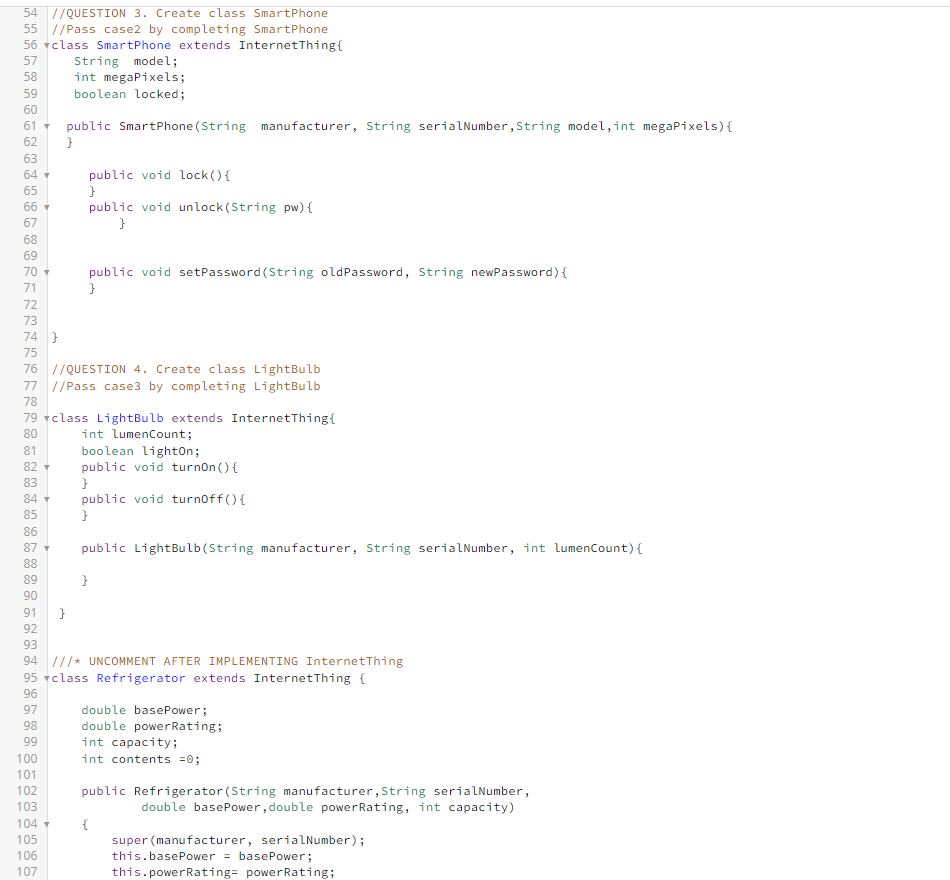

Write code for SmartPhone class which is an InternetThing that includes: a. A constructor which accepts a manufacturer(string), ), a serial number(String) , a model(String) and the number of associated megapixels(int) as its parameters. This constructor shall store the each argument appropriately and will set the phones status to locked. After assigning all instance data, the constructor should print the value Created + the result of the toString method. b. A method named setPassword that accepts two strings (old password and new password) as its parameters. The method shall change the password to the new password value only if the old password given as a parameter matches the password stored on the phone, and if the phone is unlocked. If the password is successfully changed, the method will print the value Successfully changed password for + the result of the toString method c. A method named lock that will lock the phone(), and print the value Locked + the result of the toString method. d. A method named isLocked that returns the value true is the phone is locked. e. A method named unlock that accepts a string (the password) as its parameter and unlocks the phone only if the password is correct. If the phone becomes unlocked the method should print Unlocked + the result of the toString method. f. A toString method that returns data in the format "Thing#"+getId()+"::PHONE made by "++":Model="++@IP:+getIPAddress();

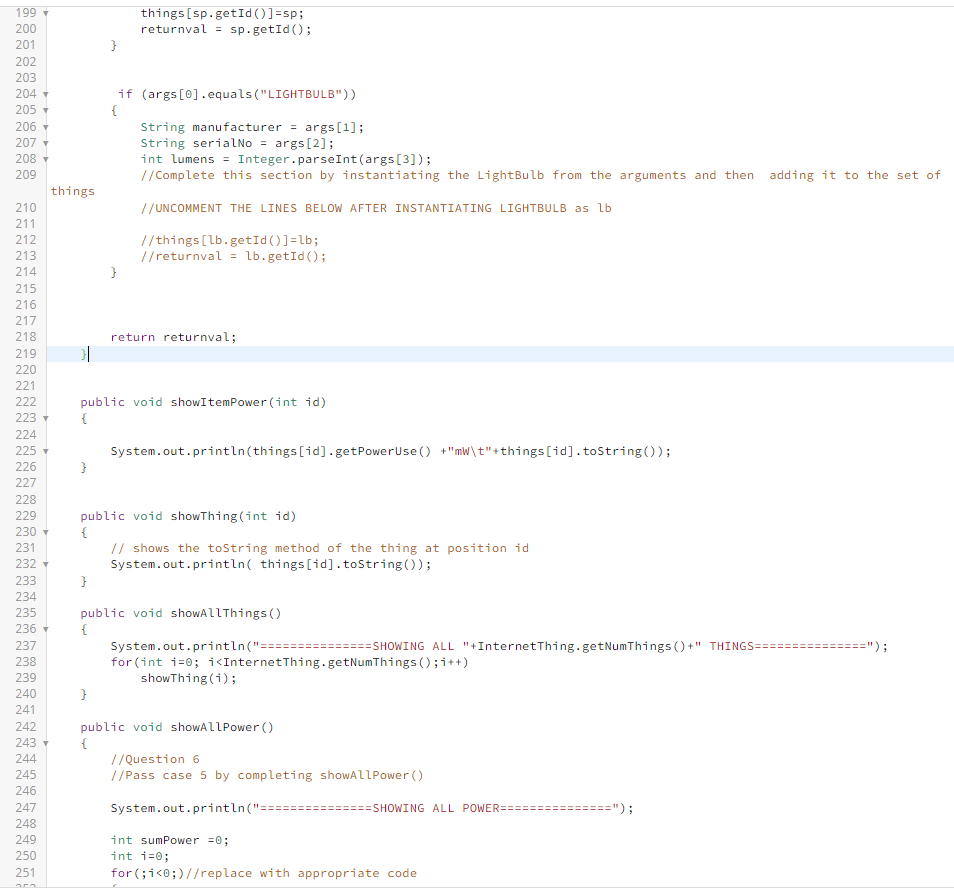

Write code for a LightBulb class that is an InternetThing which includes: a. A constructor that accepts a manufacturer(String), a serial number(String), and a lumenCount(int) then sets values in the arguments parameter appropriately, and sets a property that reflects whether the light is on to false. After assigning all instance data, the constructor should print the value Created + the result of the toString method. b. A method named turnOn() that turns on the light. The method should then print Turned on + the result of the toString method. c. A method named turnOff() that turns off the light. . The method should then print Turned off + the result of the toString method. d. In class SmartHome, method addThing, at the secton where the argument is checked for LIGHTBULB, instantiate a LightBulb with a reference called lb, and then uncomment the lines in the below that add lb to things, then return the id.

In class LightBulb, override the method named getPowerUse() that evaluates current power used by the lightbulb as the product of its lumenCount and the power use of its base class if the light is on. If the light is off, getPowerUse() returns 0.

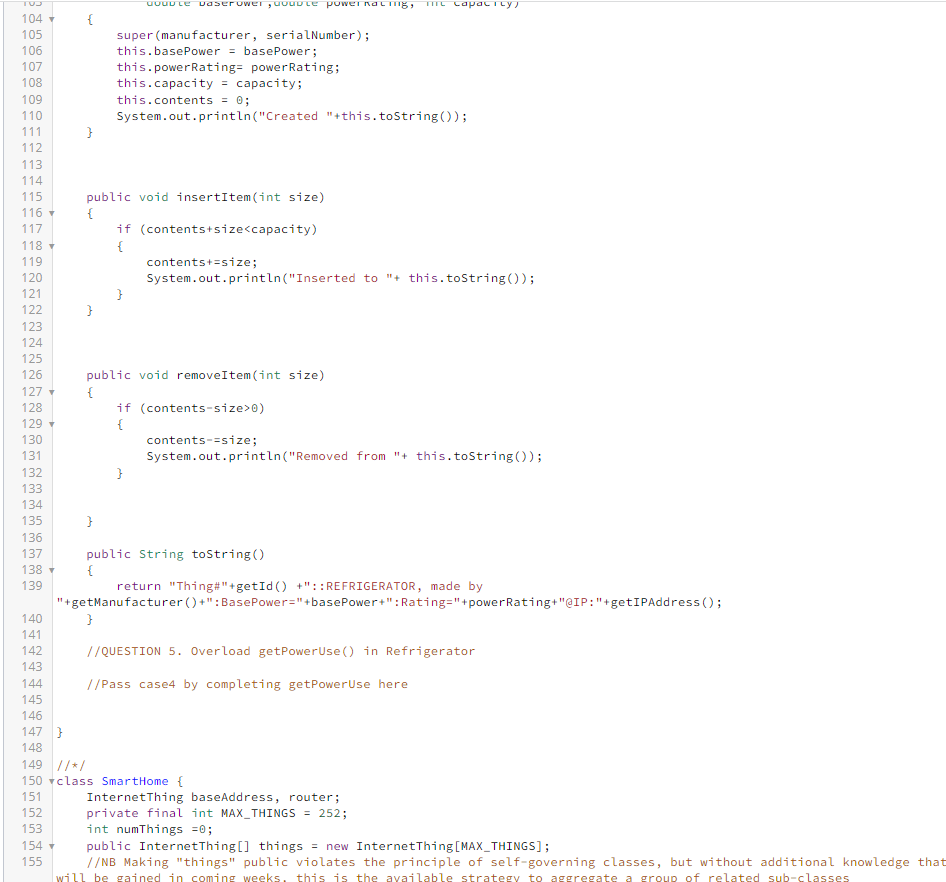

In the Refrigerator class, override the method getPowerUse() so that it returns a value that is equal to basePowerUse+contentSize*rating.

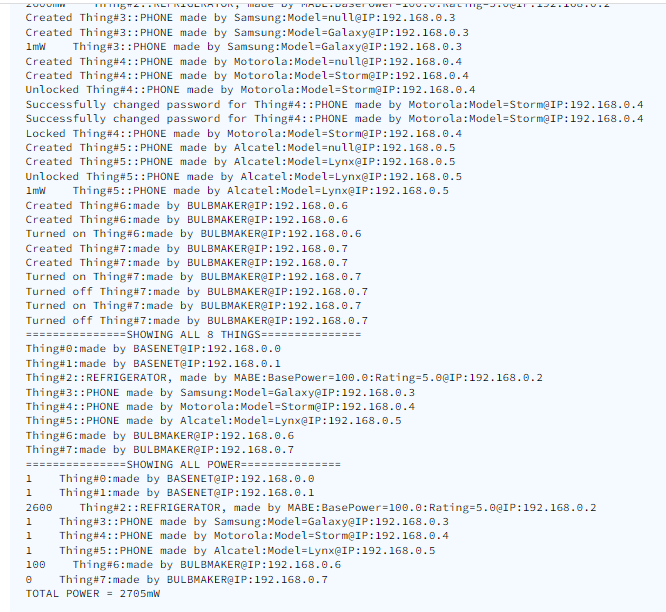

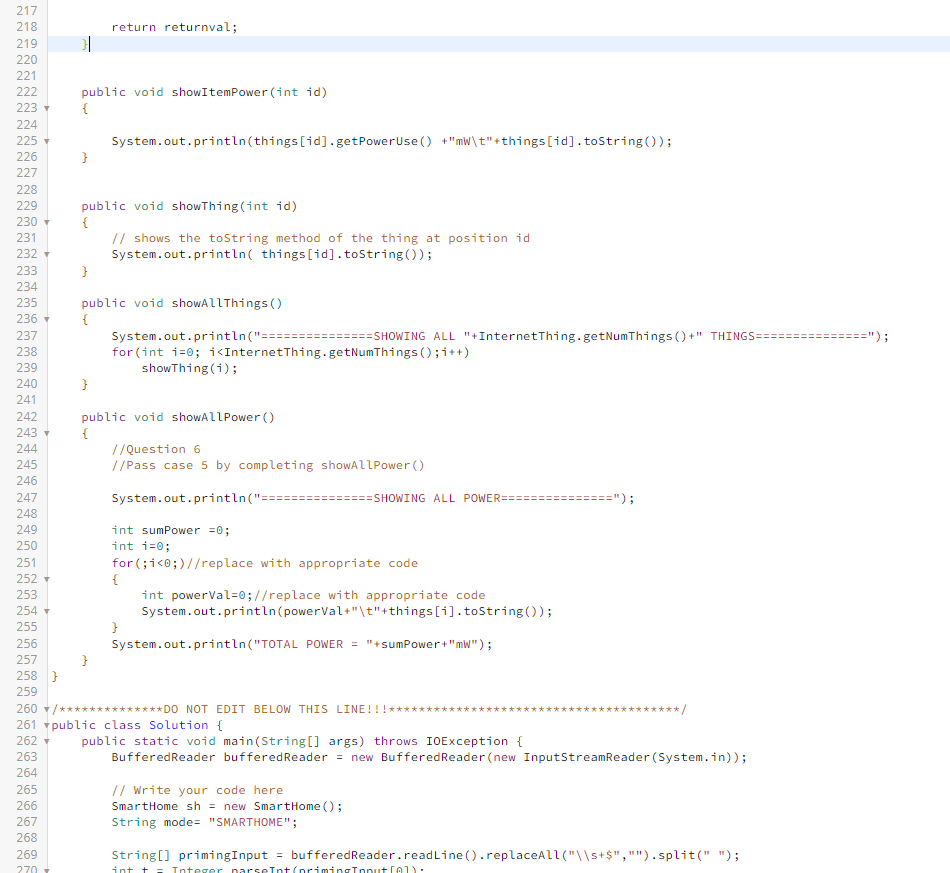

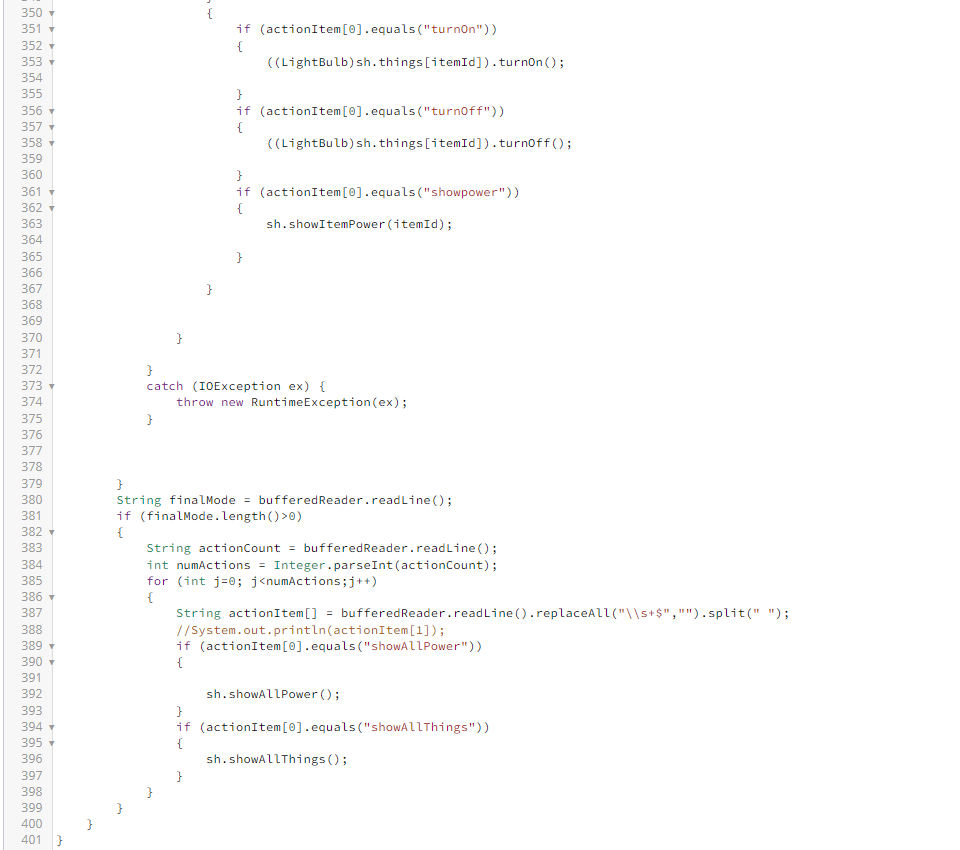

In the SmartHome class, Observe the operation of the method showAllItems and then complete the method sumAllPower(). For each item that is assessed while evaluating the total power, the method should print the power used by the item, a tab, and then the result of the toString method. At the end of the calculation, the method should output its result in the format "TOTAL POWER = "+sumPower+"mW",where sumPower represents the aggregated power use.

Submission (You will not get marks for this submission. The submission is practice for actions you will need to perform when submitting project1 your marks for the lab are earned from the Hackerrank exercise and from the scores assigned by lab techs) a. Save all classes in a separate file that matches the name of the class b. Zip the files, and make the name of your zip file Lab3..zip. c. Submit the zip file to the submission link for Lab 3.

Input Format

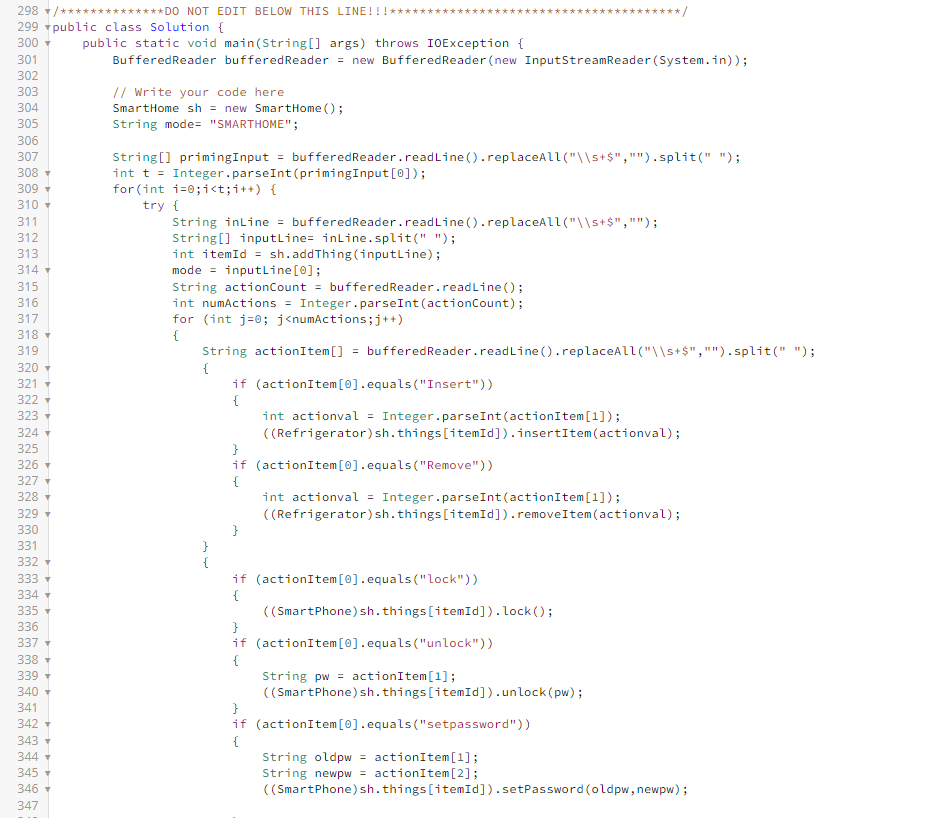

The first line of input represent t, the number of InternetThings to be added. Each InternetThing is a member of the set {REFRIGERATOR,SMARTPHONE, LIGHTBULB}. For each InternetThing the parameters sufficient to describe it are placed on the same line, and the following line specifies an integer a, the number of actions to be carried out on the InternetThing. Each action specifies it's required parameters.

After all InternetThings have been defined, the testcase closes with a symbol SMARTHOME, and a set of subsequent actions. The line following SMARTHOME contains an integer s, which describes the number of actions that will be applied to the SmartHome.

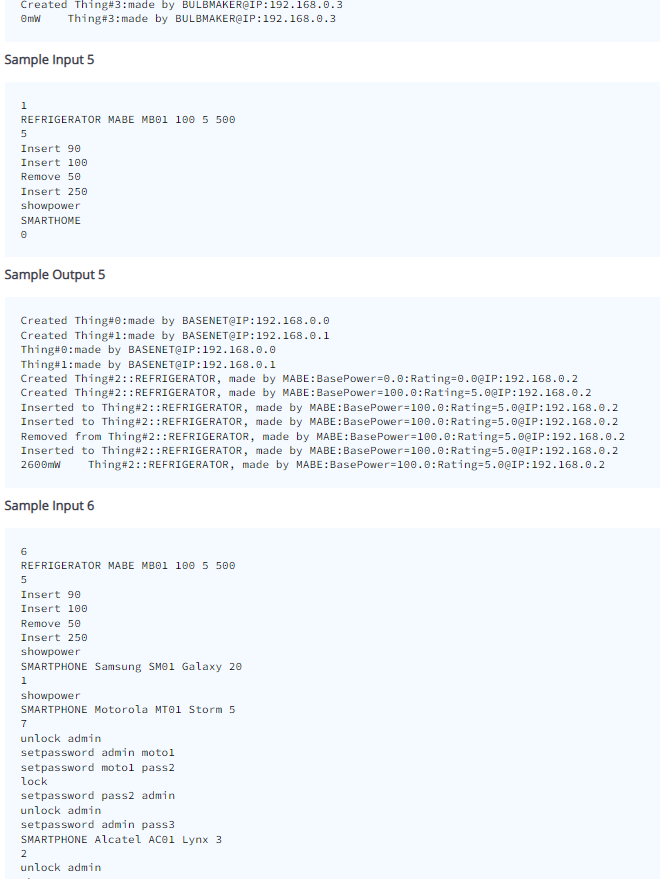

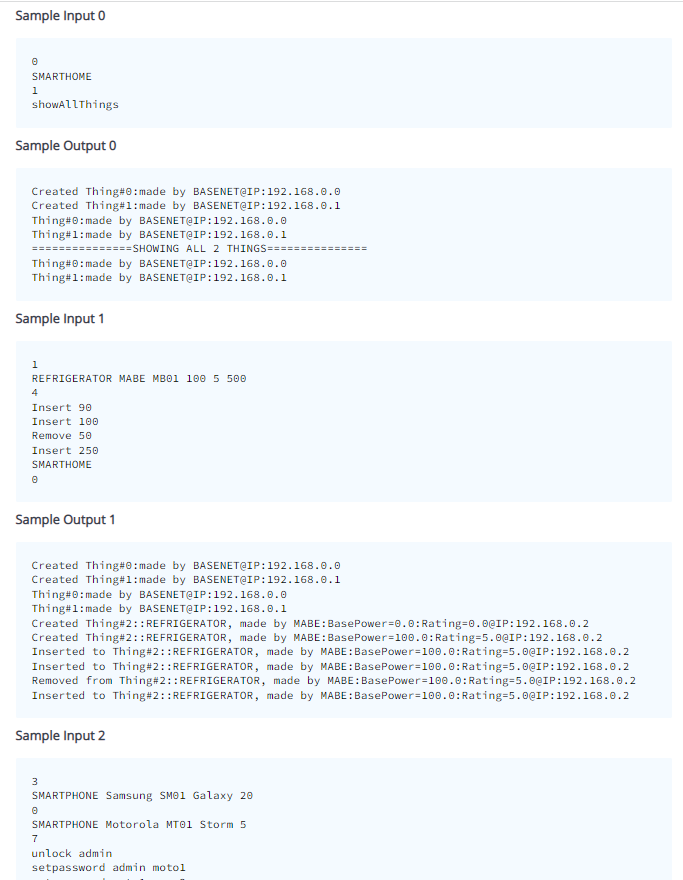

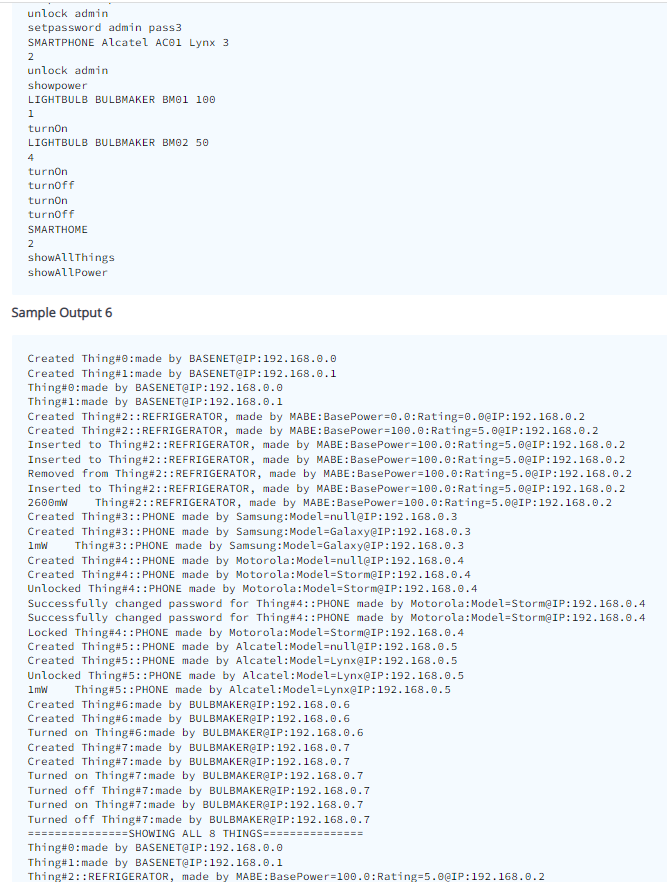

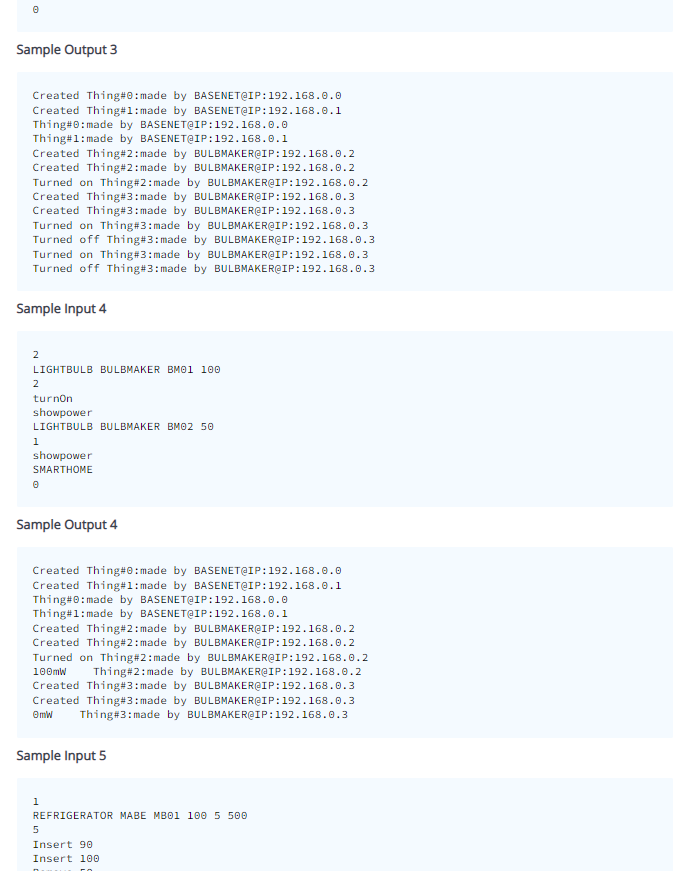

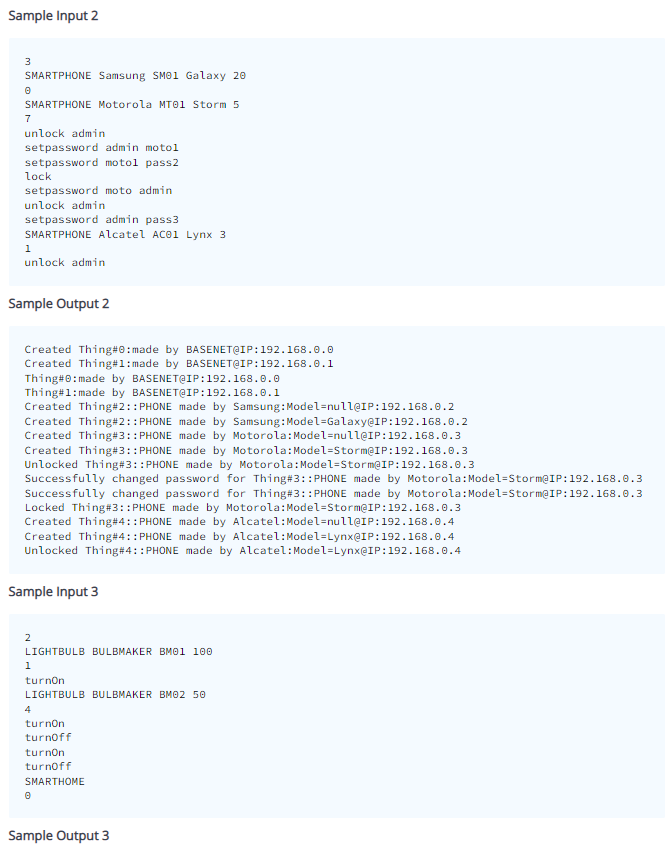

Sample Input 0 SMARTHOME 1 showAlLThings Sample Output 0 Created Thing\#@:made by BASENET@IP: 192.168.0.0 Created Thing\#1:made by BASENET@IP: 192.168.0.1 Thing\# :made by BASENETPIP: 192.168.0.0 Thing\#1: made by BASENETQIP: 192.168.0.1 ============= SHOWING ALL 2 THINGS=============== Thing\#0:made by BASENET@IP: 192.168.0.0 Thing\#1:made by BASENETPIP:192.168.0.1 Sample Input 1 1 REFRIGERATOR MABE MBQI 10550 4 Insert 90 Insert 100 Remove 50 Insert 250 SMARTHOME Sample Output 1 Created Thing\#@:made by BASENET@IP: 192.168.0.0 Created Thing\#1:made by BASENET@IP: 192.168.0.1 Thing\# 0 : made by BASENETQIP:192.168. 0.0 Thing\#1:made by BASENET@IP:192.168.0.1 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower= .0: Rating= 0.0IP:192.168.0.2 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower =100.0: Rating=5.0@IP:192.168.. .2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower =100.0: Rating=5.0@IP:192.168. .2 Removed from Thing\#2::REFRIGERATOR, made by MABE:BasePower=10e. : Rating=5.0@IP:192.168. 0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower =100.0: Rating=5.0@IP:192.168.0.2 Sample Input 2 3 SMARTPHONE Samsung SMe1 Galaxy 2 SMARTPHONE Motorola MTe1 Storm 5 7 unlock admin Sample Output 2 Created Thing\#0:made by BASENET(IP: 192.168.0.0 Created Thing\#1:made by BASENET(IP: 192.168.0.1 Thing\#Q:made by BASENETEIP: 192.168.0.0 Thing\#1:made by BASENET@IP: 192.168.0.1 Created Thing\#2: P PHONE made by Samsung:Model=nulleIP:192.168.0.2 Created Thing\#2: PHONE made by Samsung:Model=GalaxyeIP:192.168.0.2 Created Thing\#3: PHONE made by Motorola:Model=nulleIP:192.168.0.3 Created Thing\#3: PHONE made by Motorola:Model=StormeIP:192.168.0.3 Unlocked Thing\#3::PHONE made by Motorola:Model=StormeIP:192.168.0.3 Successfully changed password for Thing\#3: :PHONE made by Motorola:Model=StormeIP:192.168. .3 Successfully changed password for Thing\#3::PHONE made by Motorola:Model=StormeIP:192.168. 9.3 Locked Thing\#3: :PHONE made by Motorola:Model=StormeIP:192.168.0.3 Created Thing\#4: P PHONE made by Alcatel:Model=nulleIP:192.168.0.4 Created Thing\#4: :PHONE made by Alcatel:Model=Lynx(IP:192.168.0.4 Unlocked Thing\#4: :PHONE made by Alcatel:Model=Lynx@IP:192.168.0.4 Sample Input 3 Sample Output 3 Created Thing\# made by BASENET@IP: 192.168.0.0 Created Thing\#1:made by BASENET@IP:192.168.0.1 Thing\# 0: made by BASENETPIP:192.168. 0.0 Thing\#1:made by BASENETeIP:192.168.. .1 Created Thing\#2:made by BULBMAKERQIP: 192.168.0.2 Created Thing\#2:made by BULBMAKER@IP: 192.168.0.2 Turned on Thing\#2:made by BULBMAKER@IP: 192.168.0.2 Created Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Created Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Turned on Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Turned off Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Turned on Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Turned off Thing\#3:made by BULBMAKER@IP: 192.168.0.3 Sample Input 4 Sample Input 5 1 REFRIGERATOR MABE MB@1 105500 Sample Input 5 1 REFRIGERATOR MABE MB01 1005500 5 Insert 90 Insert 100 Remove 50 Insert 250 showpower SMARTHOME 0 Sample Output 5 Created Thing\#@:made by BASENET@IP: 192.168.0.0 Created Thing\#1:made by BASENET@IP:192.168.0.1 Thing\#0: made by BASENETPIP: 192.168.0.0 Thing\#1:made by BASENET@IP:192.168.0.1 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower=0.0:Rating=0.@@IP:192.168.0.2 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower =100.0: Rating=5.0eIP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower=10e.0:Rating=5. 9@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower =100.0: Rating=5. 0@IP:192.168.0.2 Removed from Thing\#2: REFRIGERATOR, made by MABE:BasePower=10e.0:Rating=5.0@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 2600mW Thing\#2::REFRIGERATOR, made by MABE:BasePower=10e.. Rating=5.0@IP:192.168.0.2 Sample Input 6 6 REFRIGERATOR MABE MB01 1005500 5 Insert 90 Insert 100 Remove 50 Insert 250 showpower SMARTPHONE Samsung SMe1 Galaxy 20 1 showpower SMARTPHONE Motorola MTe1 Storm 5 7 unlock admin setpassword admin motol setpassword motol pass 2 lock setpassword pass2 admin unlock admin setpassword admin pass 3 SMARTPHONE Alcatel AC1 Lynx 3 2 unlock admin Sample Output 6 Created Thing\#@:made by BASENET@IP: 192.168.0.0 Created Thing\#1:made by BASENET@IP:192.168.0.1 Thing\# : made by BASENET@IP: 192.168.0.0 Thing\#1:made by BASENET@IP: 192.168.0.1 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower=0.0:Rating=0.0@IP:192.168.0.2 Created Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 Removed from Thing\#2::REFRIGERATOR, made by MABE:BasePower=100. : Rating 5.0@IP:192.168.0.2 Inserted to Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0@IP:192.168.0.2 2600mW Thing\#2::REFRIGERATOR, made by MABE:BasePower=100.0:Rating=5.0eIP:192.168.0.2 Created Thing\#3::PHONE made by Samsung:Model=null@IP:192.168.0.3 Created Thing\#3::PHONE made by Samsung:Model=Galaxy@IP:192.168.0.3 1mW Thing\#3::PHONE made by Samsung:Model=Galaxy@IP:192.168.0.3 Created Thing\#4::PHONE made by Motorola:Model=null@IP:192.168.0.4 Created Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168.0.4 Unlocked Thing\#4:: PHONE made by Motorola:Model=StormeIP:192.168.0.4 Successfully changed password for Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168. .4 Successfully changed password for Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168. .4 Locked Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168.0.4 Created Thing\#5::PHONE made by Alcatel:Model=nulleIP:192.168.0.5 Created Thing\#5::PHONE made by Alcatel:Model=Lynx@IP:192.168.0.5 Unlocked Thing\#5:: PHONE made by Alcatel:Model=Lynx@IP:192.168.0.5 1mW Thing\#5::PHONE made by Alcatel:Model=LynxeIP:192.168.0.5 Created Thing\#6:made by BULBMAKER@IP: 192.168.0.6 Created Thing\#6:made by BULBMAKER@IP: 192.168.0.6 Turned on Thing\#6:made by BULBMAKER@IP:192.168.0.6 Created Thing\#7:made by BULBMAKER@IP:192.168.0.7 Created Thing\#7:made by BULBMAKER@IP: 192.168.0.7 Turned on Thing\#7:made by BULBMAKER@IP:192.168.0.7 Turned off Thing\# 7: made by BULBMAKER@IP: 192.168.0.7 Turned on Thing\#7:made by BULBMAKER@IP:192.168.0.7 Turned off Thing\# 7 :made by BULBMAKER@IP: 192.168.0.7 Thing\# 0: made by BASENET@IP:192.168.0.0 Thing\#1: made by BASENET@IP: 192.168.0.1 Created Thing\#3::PHONE made by Samsung:Model=null@IP:192.168.e.3 Created Thing\#3::PHONE made by Samsung:Model=Galaxy@IP:192.168.0.3 1mW Thing\#3::PHONE made by Samsung:Model=Galaxy@IP:192.168.0.3 Created Thing\#4::PHONE made by Motorola:Model=null@IP:192.168.0.4 Created Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168.0.4 Unlocked Thing\#4: P PHONE made by Motorola:Model=StormeIP: 192.168.0.4 Successfully changed password for Thing\#4::PHONE made by Motorola:Model=StormeIP:192.168. .4 Successfully changed password for Thing\#4: :PHONE made by Motorola:Model=StormeIP:192.168. .4 Locked Thing\#4::PHONE made by Motorola:Model=Storm@IP:192.168.0.4 Created Thing\#5::PHONE made by Alcatel:Model=nulleIP:192.168.0.5 Created Thing\#5::PHONE made by Alcatel:Model=Lynx@IP:192.168.0.5 Unlocked Thing\#5::PHONE made by Alcatel:Model=Lynx@IP:192.168.0.5 1mW Thing\#5::PHONE made by Alcatel:Model=LynxeIP:192.168.0.5 Created Thing\#6:made by BULBMAKER@IP: 192.168.0.6 Created Thing\#6:made by BULBMAKER@IP: 192.168.0.6 Turned on Thing\#6:made by BULBMAKER@IP:192.168.0.6 Created Thing\#7:made by BULBMAKER@IP: 192.168.0.7 Created Thing\#7:made by BULBMAKER@IP: 192.168.0.7 Turned on Thing\#7:made by BULBMAKER@IP: 192.168.0.7 Turned off Thing\#7:made by BULBMAKER@IP: 192.168.0.7 Turned on Thing\#7:made by BULBMAKER@IP:192.168.0.7 Turned off Thing\#7:made by BULBMAKER@IP: 192.168.0.7 ============== SHOWING ALL 8 THINGS============== Thing\# :made by BASENETPIP: 192.168.0.0 Thing\#1: made by BASENETPIP:192.168. 0.1 Thing\#2: :REFRIGERATOR, made by MABE:BasePower =100.: Rating=5.0@IP:192.168.0.2 Thing\#3: :PHONE made by Samsung:Model=Galaxy@IP: 192.168.0.3 Thing\#4: :PHONE made by Motorola:Model=StormeIP: 192.168.0.4 Thing\#5: PHONE made by Alcatel: Model=LynxeIP: 192.168.0.5 Thing\#6:made by BULBMAKER@IP: 192.168.0.6 Thing\#7:made by BULBMAKER@IP: 192.168.0.7 ===============\$HOWING ALL POWER=============== \{ \} if (actionItem[0]. equals ("turnoff")) \{ ((LightBulb) sh. things [itemId]) .turnoff(); \} if (actionItem[0]. equals("showpower")) \{ sh. showItemPower (itemId); \} \} } catch (IOException ex) \{ throw new RuntimeException(ex); \}
