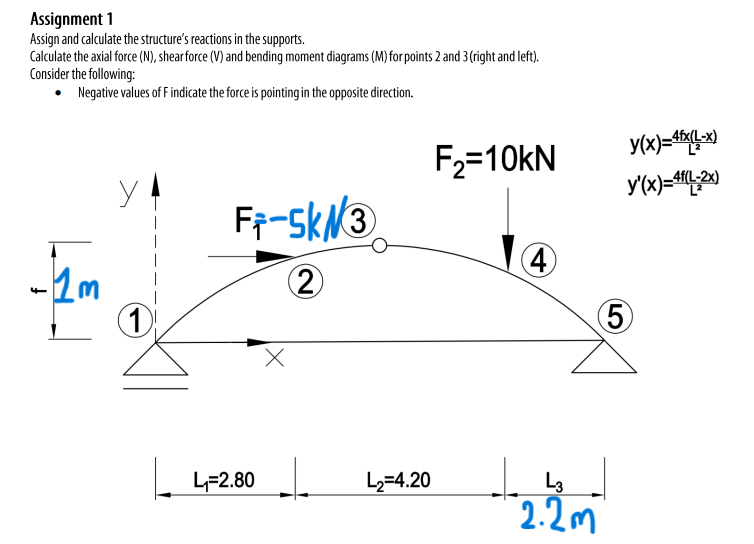

Assignment $1$ Assignment $1$

Assign and calculate the structure's reactions in the supports.

Calculate the axial force $(N),$ shear force $(V)$ and bending moment diagrams $(M)$ for points $2$ and $3($right and left$).$

Consider the following:

Negative values of F indicate the force is pointing in the opposite direction.

Assign and calculate the structure's reactions in the supports.

Calculate the axial force $(N),$ shear force $(V)$ and bending moment diagrams $(M)$ for points $2$ and $3($right and left$).$

Consider the following:

Negative values of F indicate the force is pointing in the opposite direction.

f$=3$m$,$ F$1=-5$kN and L$3=2\mathrm{.}2$m
