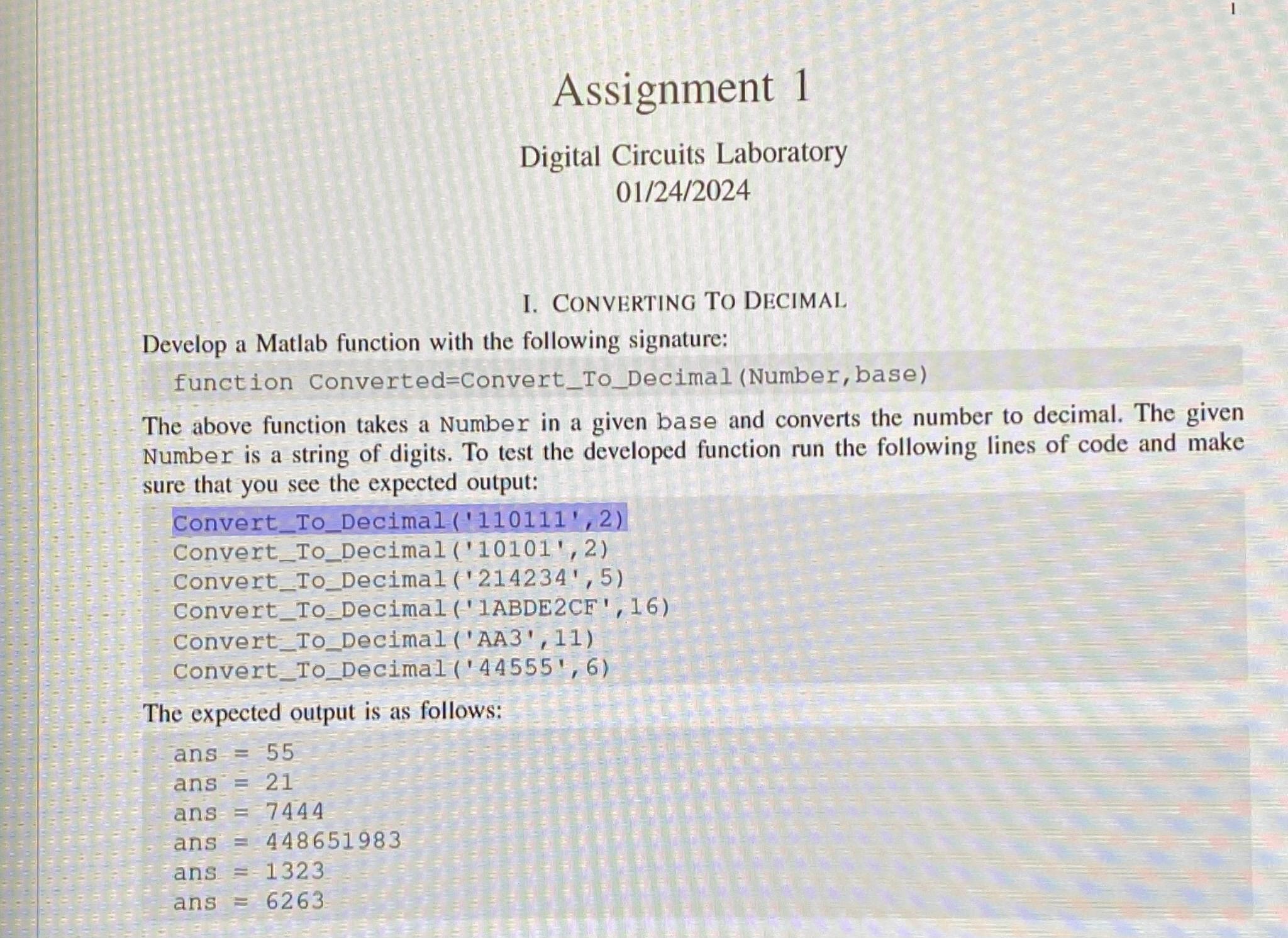

Assignment $1$

Digital Circuits Laboratory

$\frac{01}{24}\frac{?}{2024}$

I. Converting To Decimal

Develop a Matlab function with the following signature:

function Converted$=$Convert$\_$To$\_$Decimal $($Number$,$ base$)$

The above function takes a Number in a given base and converts the number to decimal. The given Number is a string of digits. To test the developed function run the following lines of code and make sure that you see the expected output:

Convert$\_$To$\_$Decimal ${(}^{\text{'}}{110111}^{\text{'}},2)$

Convert$\_$To$\_$Decimal ${(}^{\text{'}}{10101}^{\text{'}},2)$

Convert$\_$To$\_$Decimal $(\text{'}214234\text{'},5)$

Convert$\_$To$\_$Decimal $(\text{'}1$ABDE$2$CF$\text{'},16)$

Convert$\_$To$\_$Decimal $(\text{'}$AA$3\text{'},11)$

Convert$\_$To$\_$Decimal $(\text{'}44555\text{'},6)$

The expected output is as follows:

ans $=55$

ans $=21$

ans $=7444$

ans $=448651983$

ans $=1323$

ans $=6263$
