Question: ASSIGNMENT 1 Use the flexibility method to find the member end moments for the gable frame shown. Then, draw the bending moment diagram. Assume E

ASSIGNMENT 1

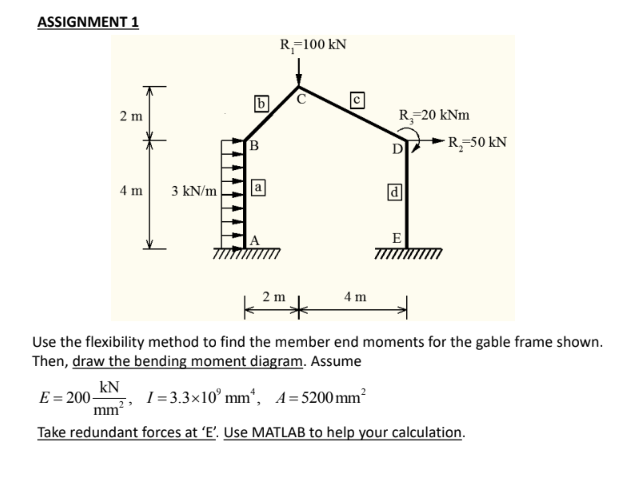

Use the flexibility method to find the member end moments for the gable frame shown.
Then, draw the bending moment diagram. Assume
E=200kNmm2,I=3.3109mm4,A=5200mm2
Take redundant forces at 'E'. Use MATLAB to help your calculation.
ASSIGNMENT 1 Use the flexibility method to find

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
