Question: Assignment 2: Relational Schema: Convert the ERD to Relational Schema. Your answer must be professionally drawn like the slide example. Highlight PK, FK with underline

Assignment 2: Relational Schema: Convert the ERD to Relational Schema. Your

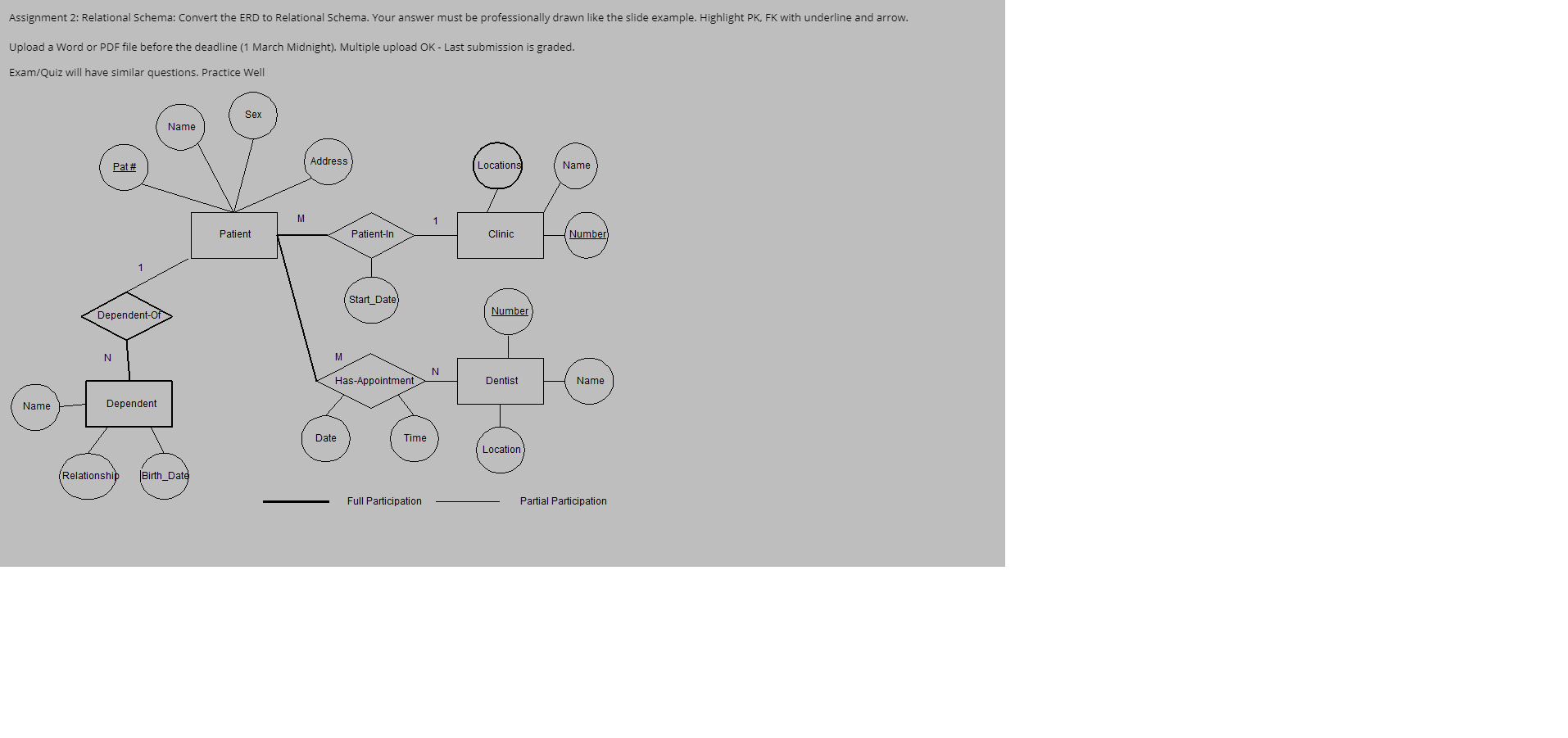

Assignment 2: Relational Schema: Convert the ERD to Relational Schema. Your answer must be professionally drawn like the slide example. Highlight PK, FK with underline and arrow. Upload a Word or PDF file before the deadline (1 March Midnight). Multiple upload OK - Last submission is graded. Exam/Quiz will have similar questions. Practice Well Sex Name Address Pat # Locations Name M 1 Patient Patient-In Clinic Number) Start_Date Dependent-01 Number N M N Has-Appointment Dentist Name Name Dependent Date Time Location (Relationship Birth_Date Full Participation Partial Participation
