Question: Assignment 2 Revision ( Branching and Parallel Pipes ) A . The three water - filled tanks shown in the following figure are connected by

Assignment 2 Revision (Branching and Parallel Pipes)

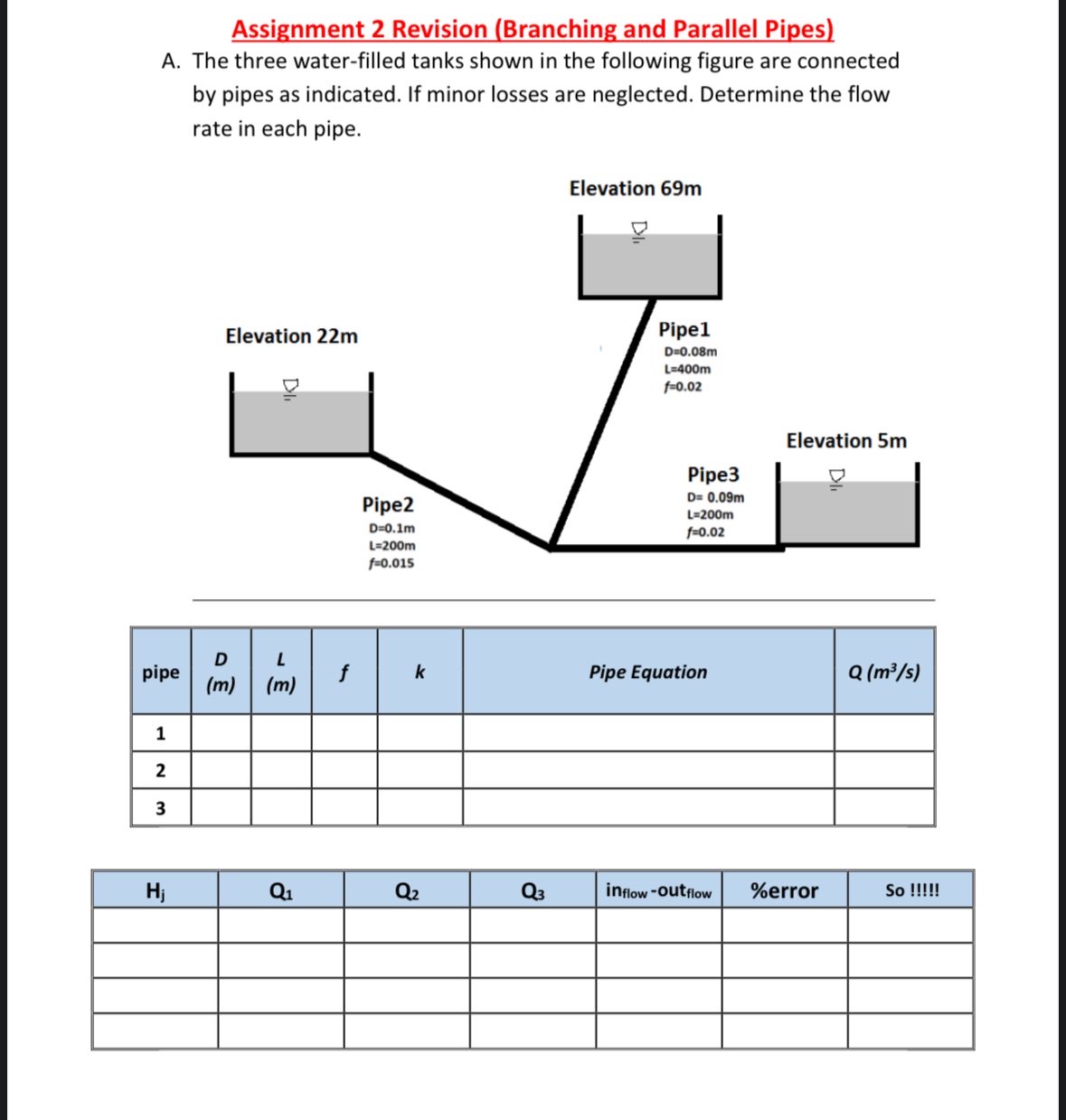

A. The three water-filled tanks shown in the following figure are connected by pipes as indicated. If minor losses are neglected. Determine the flow rate in each pipe.
\table[[pipe,\table[[D
Assignment 2 Revision ( Branching and Parallel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
