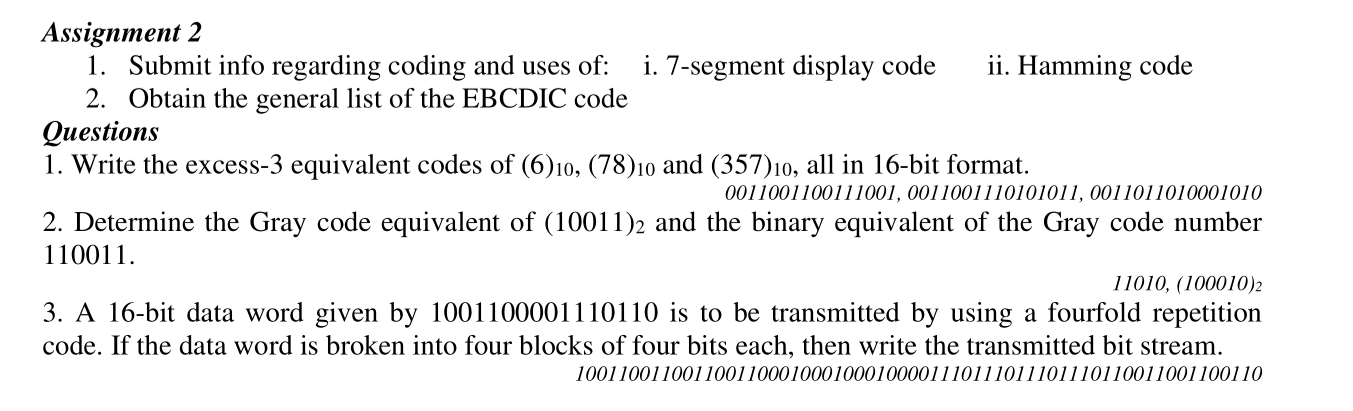

Assignment $2$

Submit info regarding coding and uses of:

i$.7-$segment display code

ii$.$ Hamming code

Obtain the general list of the EBCDIC code

Questions

Write the excess$-3$ equivalent codes of $(6{)}_{10},(78{)}_{10}$ and $(357{)}_{10},$ all in $16-$bit format. $0011001100111001,0011001110101011,0011011010001010$

Determine the Gray code equivalent of $(10011{)}_2$ and the binary equivalent of the Gray code number $110011.$

$11010,(100010)2$

A $16-$bit data word given by $1001100001110110$ is to be transmitted by using a fourfold repetition code. If the data word is broken into four blocks of four bits each, then write the transmitted bit stream. $1001100110011001100010001000100001110111011101110110011001100110$
