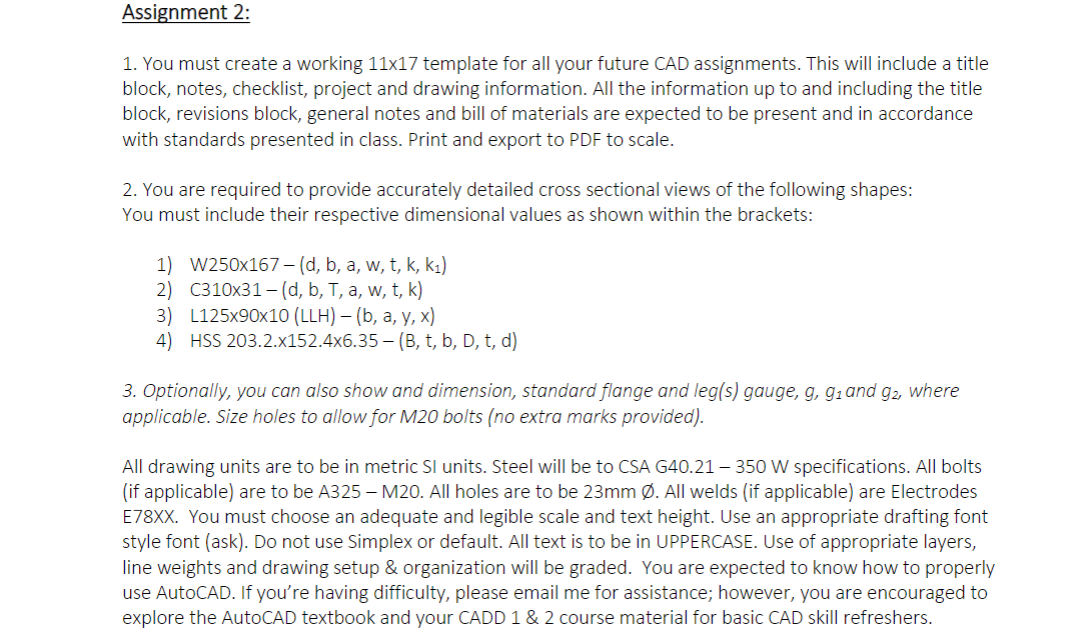

Assignment $2$:

You must create a working $1117$ template for all your future CAD assignments. This will include a title

block, notes, checklist, project and drawing information. All the information up to and including the title

block, revisions block, general notes and bill of materials are expected to be present and in accordance

with standards presented in class. Print and export to PDF to scale.

You are required to provide accurately detailed cross sectional views of the following shapes:

You must include their respective dimensional values as shown within the brackets:

$W250167-(d,b,a,w,t,k,k_1)$

$C31031-(d,b,T,a,w,t,k)$

$L1259010($LLH$)-(b,a,y,x)$

HSS $203\mathrm{.}2.$x$152\mathrm{.}4\backslash$times $6\mathrm{.}35-($B$,$ t$,$ b$,$ D$,$ t$,$ d$)$

Optionally, you can also show and dimension, standard flange and leg$($s$)$ gauge, $g,g_1$ and $g_2,$ where

applicable. Size holes to allow for M$2$O bolts $($no extra marks provided$).$

All drawing units are to be in metric SI units. Steel will be to CSA G$40\mathrm{.}21-350$ W specifications. All bolts

$($if applicable$)$ are to be A$325-$ M$20.$ All holes are to be $23mm\frac{O}{?}.$ All welds $($if applicable$)$ are Electrodes

E$78$XX$.$ You must choose an adequate and legible scale and text height. Use an appropriate drafting font

style font $($ask$).$ Do not use Simplex or default. All text is to be in UPPERCASE. Use of appropriate layers,

line weights and drawing setup & organization will be graded. You are expected to know how to properly

use AutoCAD. If you're having difficulty, please email me for assistance; however, you are encouraged to

explore the AutoCAD textbook and your CADD $1$&$2$ course material for basic CAD skill refreshers.
