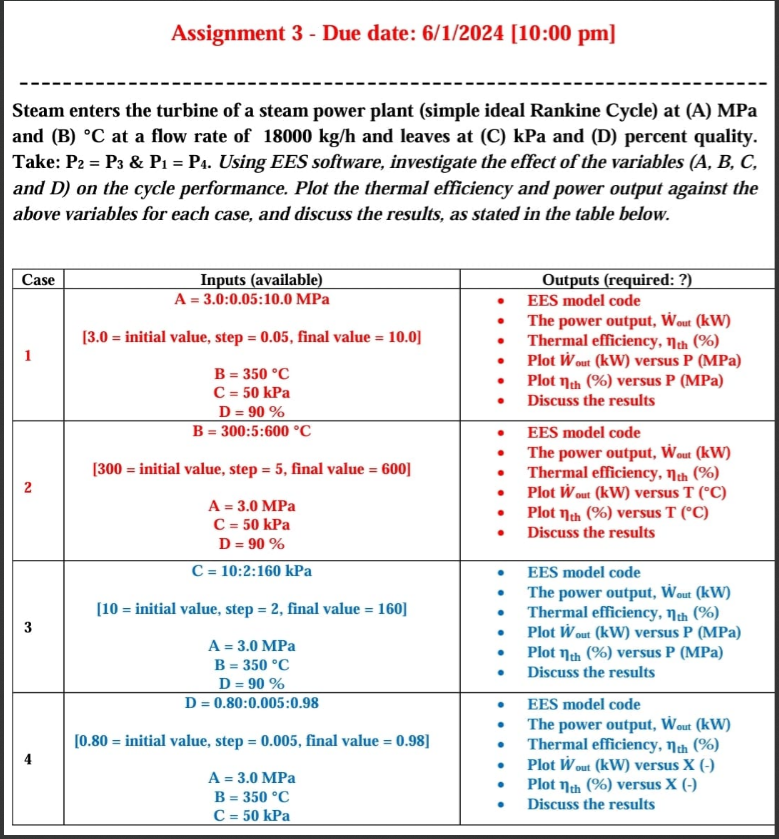

Assignment $3-$ Due date: $6/1/2024[10$:$00$ pm$]$

Steam enters the turbine of a steam power plant $($simple ideal Rankine Cycle$)$ at $($A$)$ MPa

and $($B$)C$ at a flow rate of $1800k\frac{g}{h}$ and leaves at $($C$)$ kPa and $($D$)$ percent quality.

Take: $P_2=P_3$&$P_1=P_4.$ Using EES software, investigate the effect of the variables $,$

and $D)$ on the cycle performance. Plot the thermal efficiency and power output against the

above variables for each case, and discuss the results, as stated in the table below.
