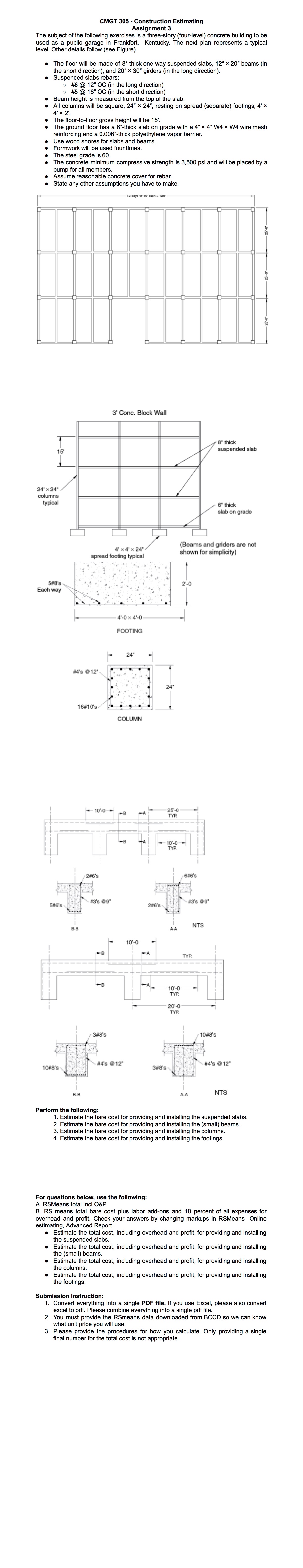

Assignment $3($four$-$level$)$ concrete building to be The subject of the following exercises is a three$-$story $($for used as a public garage in Frankfort, Kentucky. The next plan represents a typical level. Other details follow $($see Figure$).$

The floor will be made of $8^{n-t}-$thick one$-$way suspended slabs, ${12}^{\text{'}\text{'}}{20}^n$ beams $($in the short direction$),$ and ${20}^{\text{'}\text{'}}{30}^{\text{'}\text{'}}$ girders $($in the long direction$).-$ Suspended slabs rebars:

The floor$-$to$-$floor gross height will be ${15}^{\text{'}}.-$ The ground floor has a $6^{-}$ "thick slab on grade with a $4^{\text{'}\text{'}}{4}^{\text{'}\text{'}}W4W4$ wire mesh reinforcing and a ${0\mathrm{.}0006}^{-t}-$thick polyethylene vapor barrier.

Use wood shores for slabs and beams. Formwork $1$ ill be used four times. The steel grade is $60.$ Therete minimum compressive strength is $3,500$ and will be placed by

pump for all members. $-$ Assume reasonable concrete cover for rebar. State any other assumptions you have to make.

Estimate the bare cost for providing and installing the suspended slabs. $3.$ Estimate the bare cost for providing and installing the $($small$)$ beams. $4.$ Estimate the bare cost for providing and installing columns.

For questions below, use the following:

A$.$ RSMeans total incl. O&P

B$.$ RS means total bare cost plus labor add$-$ons and $10$ percent of all expenses for

overhead and profit. Check your answers by changing markups in RSMeans Online

estimating, Advanced Report.

Estimate the total cost, including overhead and profit, for providing and installing

the suspended slabs.

Estimate the total cost, including overhead and profit, for providing and installing

the $($small$)$ beams.

Estimate the total cost, including overhead and profit, for providing and installing

the columns.

Estimate the total cost, including overhead and profit, for providing and installing

the footings.

Submission Instruction:

Convert everything into a single PDF file. If you use Excel, please also convert

excel to pdf$.$ Please combine everything into a single pdf file.

You must provide the RSmeans data downloaded from BCCD so can know

what unit price you will use.

Please provide the procedures for how you calculate. Only providing a single

final number for the total cost is not appropriate.
