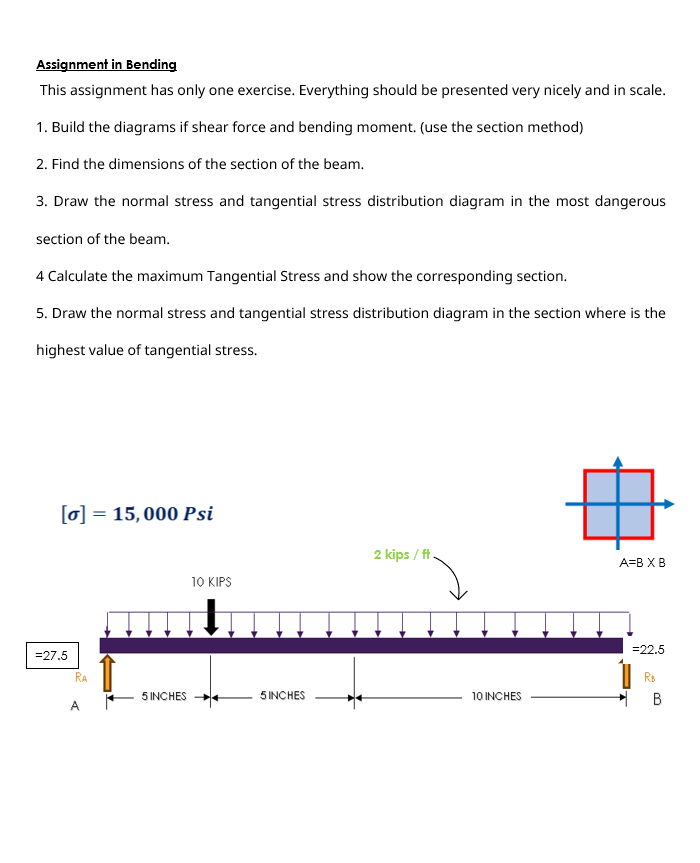

Assignment in Bending

This assignment has only one exercise. Everything should be presented very nicely and in scale.

Build the diagrams if shear force and bending moment. $($use the section method$)$

Find the dimensions of the section of the beam.

Draw the normal stress and tangential stress distribution diagram in the most dangerous

section of the beam.

$4$ Calculate the maximum Tangential Stress and show the corresponding section.

Draw the normal stress and tangential stress distribution diagram in the section where is the

highest value of tangential stress.

$[$sigma$]=15,000"$ Psi $"$

RA $=27\mathrm{.}5$ KIPS

RB$=22\mathrm{.}5$ KIPS

AREA $=$ B X B
