Question: Assume an 8 - bit ALU is created from 1 - bit ALUs like the one shown below. Give the inputs necessary to produce the

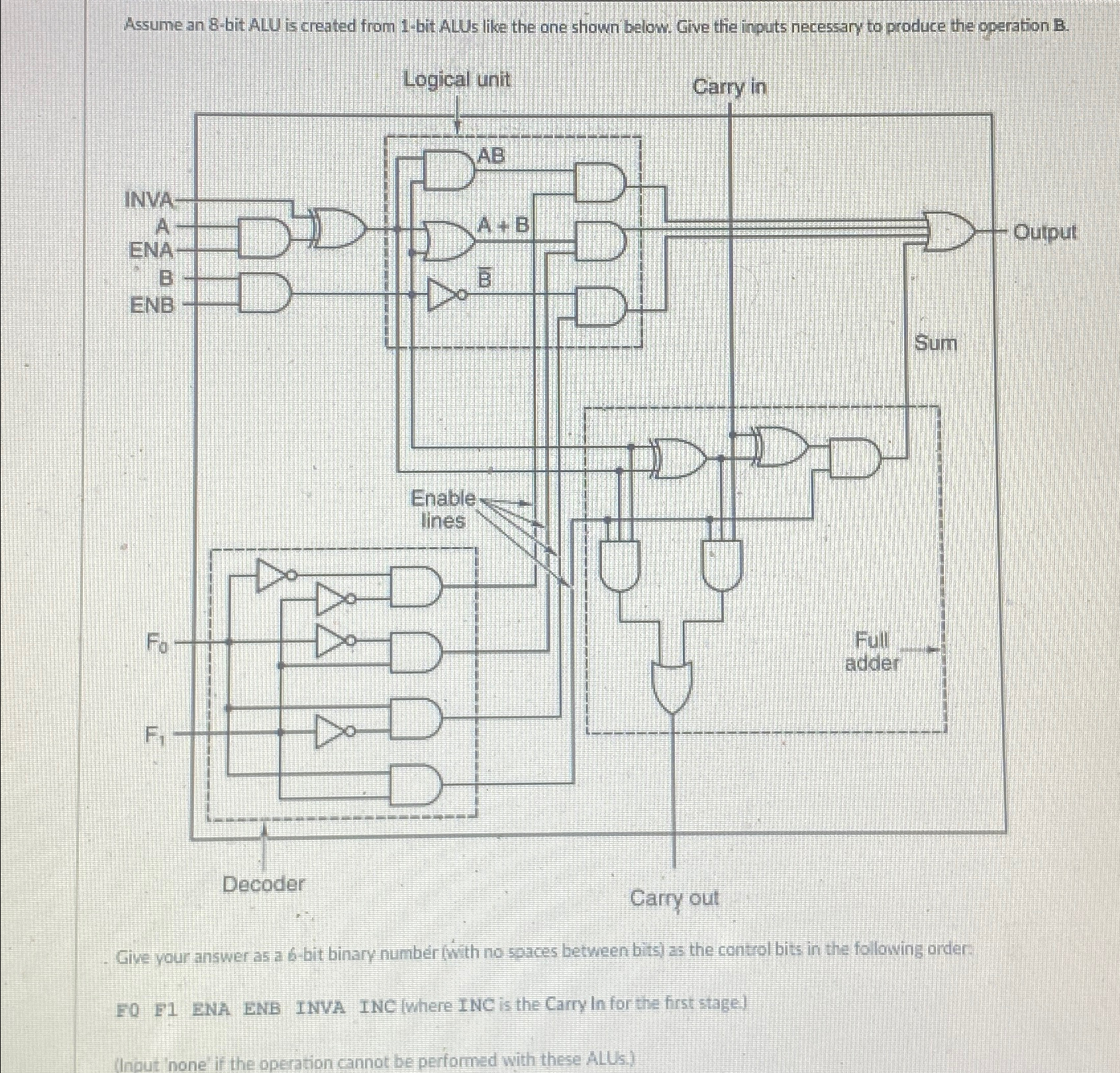

Assume an 8-bit ALU is created from 1-bit ALUs like the one shown below. Give the inputs necessary to produce the gperation B.
Give your answer as a b-bit binary number W' Wh no spaces between bits as the control bits in the following order:
F0 F1 ENA ENB INVA INC Where INC is the Carry in for the first stagel
(Ingut Inone if the operation cannot be perforned with these ALUs)
Assume an 8 - bit ALU is created from 1 - bit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
