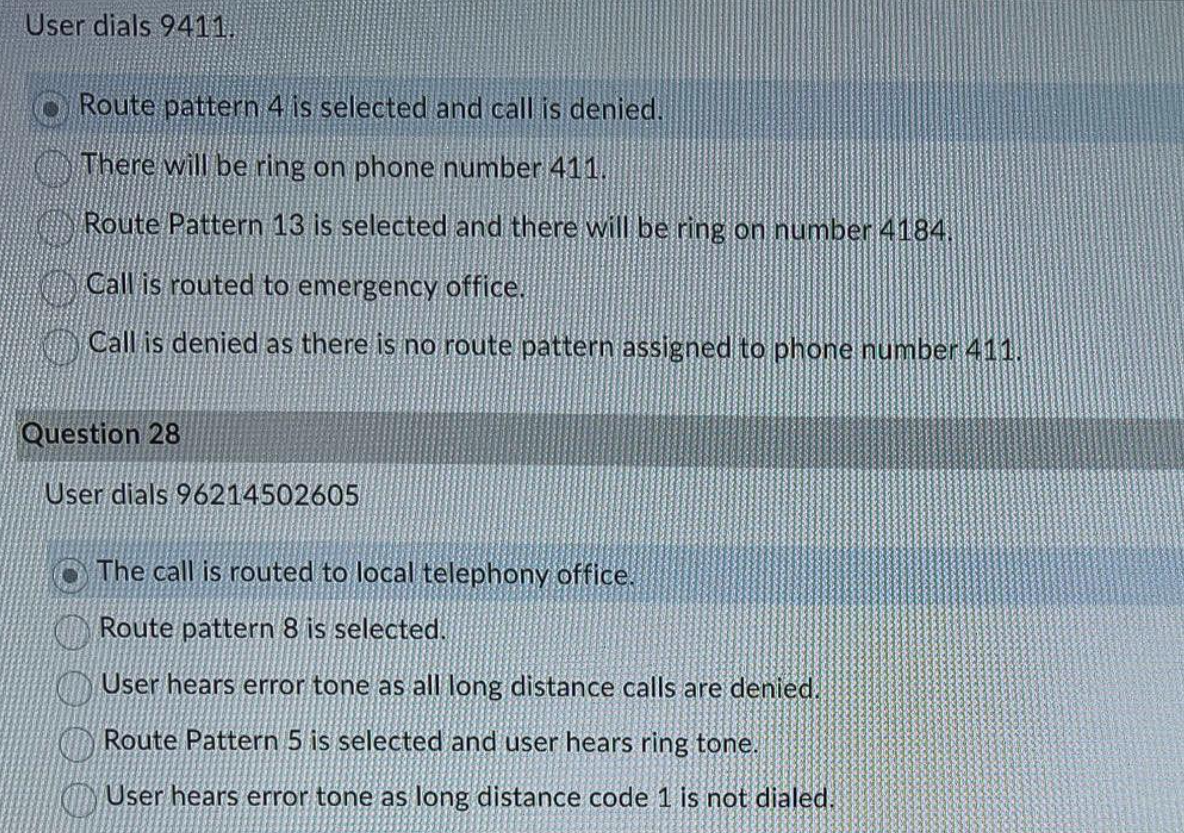

Assume that the ARS fac is '9', and that users have permission to place outbound calls. ARS Digit Analysis Report Dialed Total Route Call String Min Max Pattern Type 011 11 18 1 lop 1416 11 11 2 fnpa 1418 11 11 88 fnpa 14184 11 11 13 fnpa 1621 11 11 5 tnpa 190XXXXXXXX 11 11 deny fnpa 1919xXXXXXX 11 11 8 fnpa 705XXXXXXX 10 10 4 hnpa 411 3 3 deny svcl 611 3 3 4 Svcl 911 3 3 9 emer A user dials '919954441234' The user hears error tone because all calls to 19xx service is denied. The call is routed to the security office." Route pattern 8 is selected by the table The user hears error tone from the PBX because no match is made in any row The user hears error tone because if numbers start with 6, they can only be 3 digits long A user dials 914184551234 The PBX doesn't know whether to select Route pattern 3 or 11, so it selects 3, because 13 is lower than 88. Error tone is generated because there is no such dialled string in the analysis table. Route pattern 88 is the first match, so it is selected. Route pattern 13 is selected The PBX adds T13 and 88 together, and selects Route Pattern 10The PBX adds 13 and 88 together, and selects Route Pattern 101. User dials 9411. Route pattern 4 is selected and call is denied. There will be ring on phone number 411. Route Pattern 13 is selected and there will be ring on number 4184 Call is routed to emergency office. Call is denied as there is no route pattern assigned to phone number 411. Question 28 User dials 96214502605 The call is routed to local telephony office. Route pattern 8 is selected. User hears error tone as all long distance calls are denied. Route Pattern 5 is selected and user hears ring tone. User hears error tone as long distance code 1 is not dialed.
