Assume that you work as a network engineer for one of the local internet service providers (ISPs) in Kuwait. Your ISP provides a link with bandwidth 90 Gbps to directly connect two branches of two different banks (example: NBK and Gulf Bank) to the Central Bank of Kuwait Both branches share the same link since they are located in the same building. NBK subscribes for double the bandwidth Gulf Bank. The generated traffic at both branches varies over time. Therefore, both banks demand the following quality of service (QoS) constraints: NBK Maximum Delay of 2 milliseconds, Dmax = 2 x 10^-3 The average rate is 50 Gbps. Gulf Bank Maximum Delay of 2 milliseconds. The average rate is 20 Gbps. Assuming that the average packet size is 60,000 Byte, design a traffic policing mechanism to regulate traffic and maintain the above mentioned Qos constraints. Hint: each Byte is 8 bits

start with this solution, find r1 r2 b1 and b2

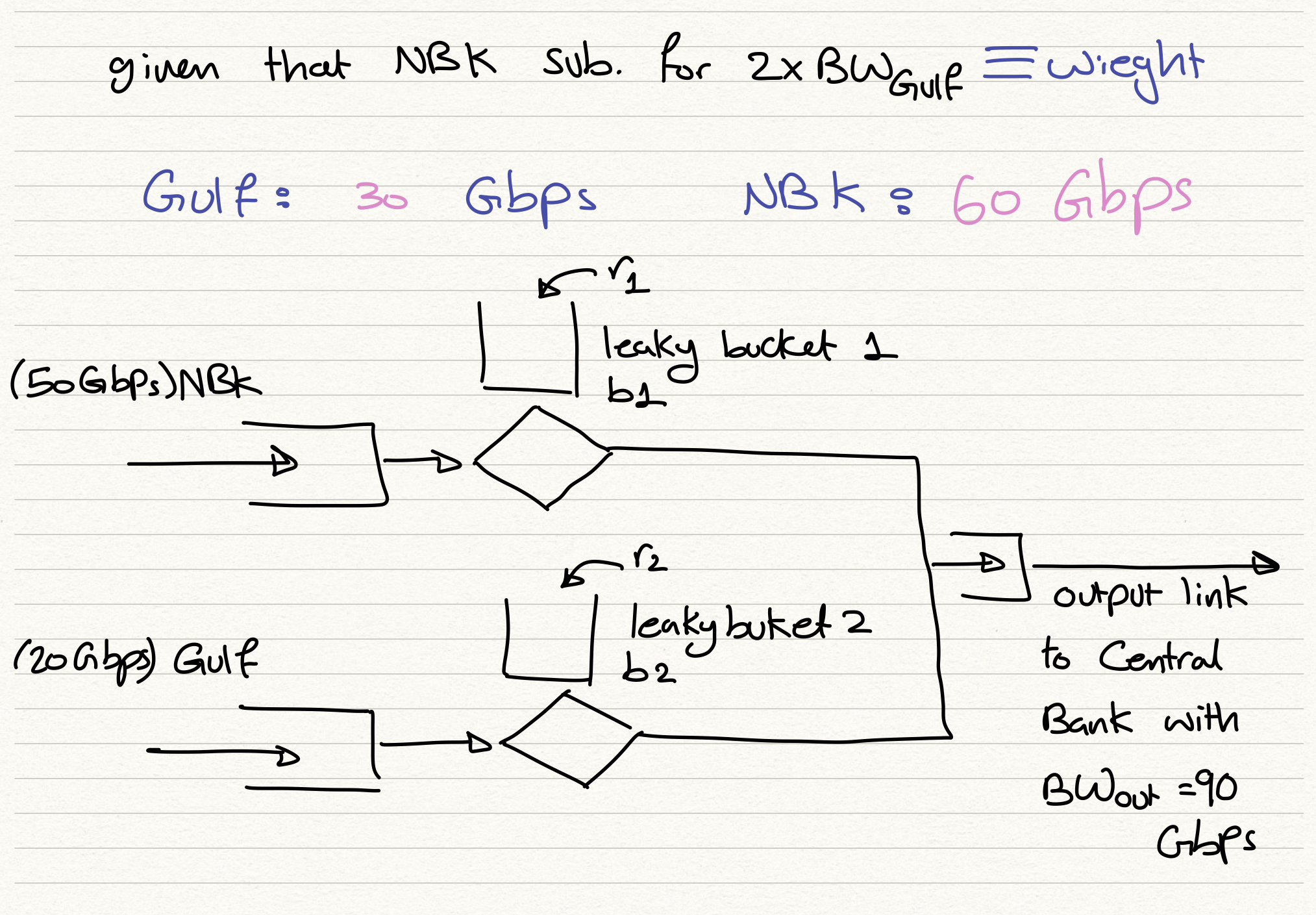

given that NBK sub for 22 BW Gulf Wieght Gulf: 30 Gbps NB K & 60 Gbps org leaky bucket a (50Gbps) NBK bi r2 output link (20 Gbps) Gulf U leaky buketa to Central Bank with B Wout =90 Gbps
