Question: At the instant shown, link A B has an angular velocity. A B = 2 r a d s . If each link is considered

At the instant shown, link AB has an angular velocity. AB=2rads. If each link is considered as a uniform slender bar with a weight of 0.6lbin.

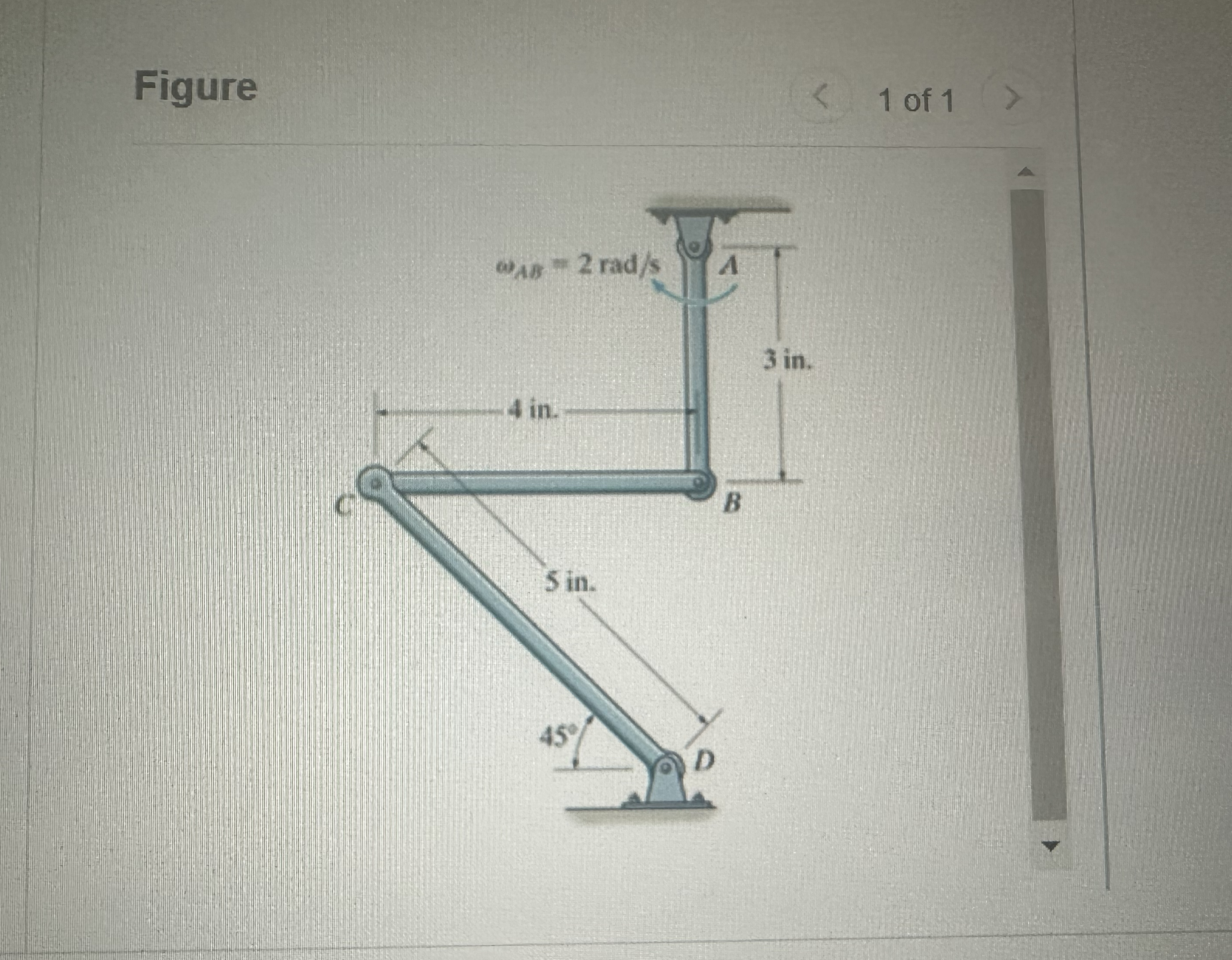

(Figure 1)
Part A
Determine the total kinetic energy of the system.
Express your answer to three significa
Figure
1 of 1nt figures and include the appropriate units.
At the instant shown, link A B has an angular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
