Automotive Engineering Technology

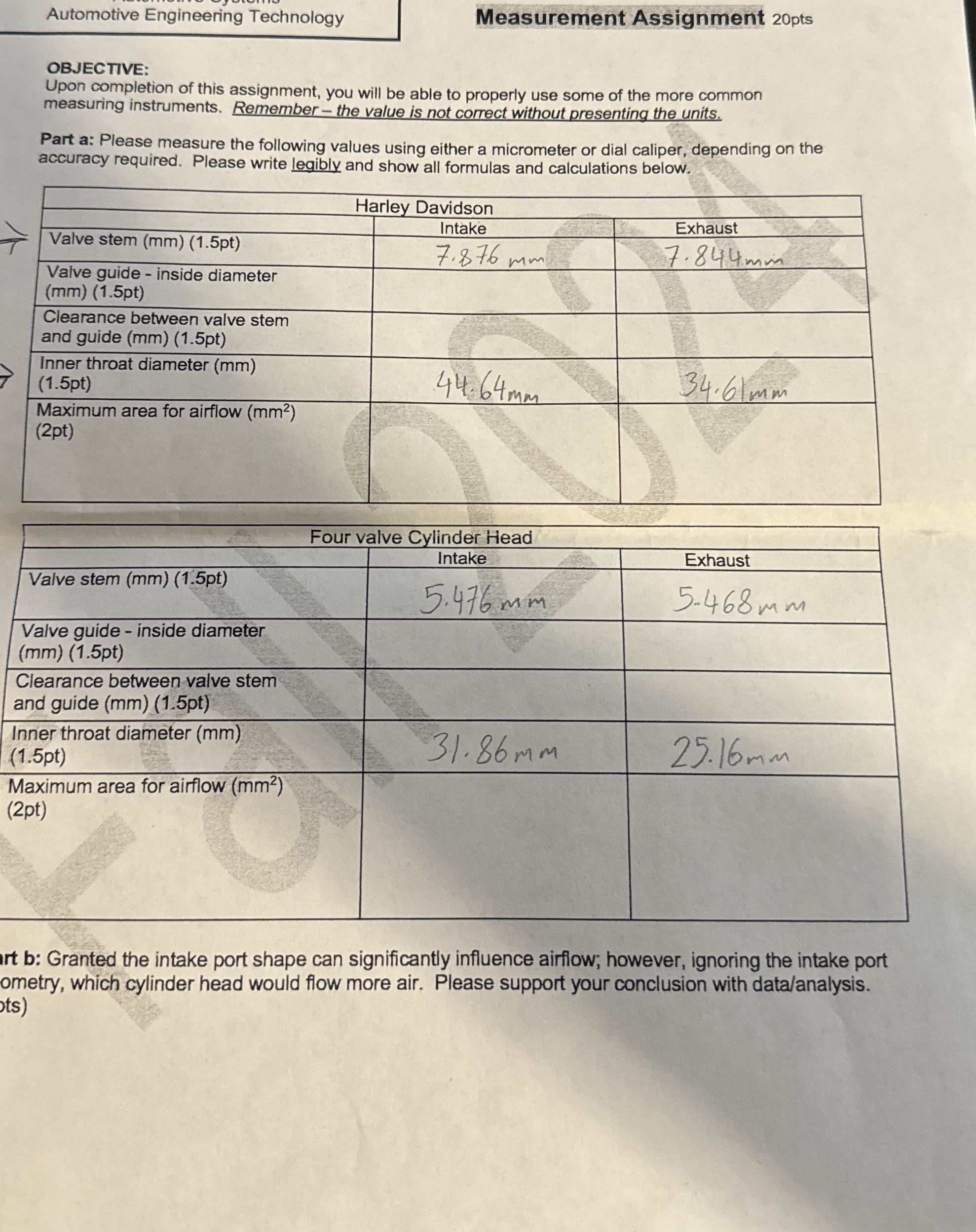

Measurement Assignment $20$pts

OBJECTIVE:

Upon completion of this assignment, you will be able to properly use some of the more common measuring instruments. Remember $-$ the value is not correct without presenting the units.

Part a: Please measure the following values using either a micrometer or dial caliper, depending on the accuracy required. Please write legibly and show all formulas and calculations below.

$\backslash$table$[[$Harley Davidson,$],[$Intake$,$Exhaust,$],[$Valve stem $(mm)(1\mathrm{.}5pt),7\mathrm{.}876$ mm$,7\mathrm{.}844$ mm$],[\backslash$table$[[$Valve guide $-$ inside diameter$],[($mm$)(1\mathrm{.}5$pt$)]],,],[\backslash$table$[[$Clearance between valve stem$],[$and guide $(mm)(1\mathrm{.}5pt)$
