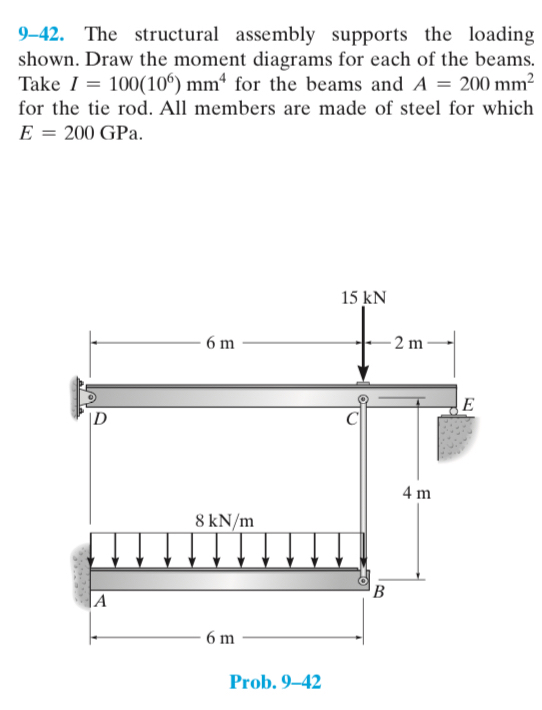

Avoid using table when calculating deflection or flexibility coefficient. The structural assembly supports the loading shown. Draw the moment diagrams for each of the beams. Take $I=100({10}^6)m{m}^4$ for the beams and $A=200m{m}^2$ for the tie rod. All members are made of steel for which $E=200$GPa.

Prob. $9-42$
