Question: ( b ) A balanced three - phase machine is connected to a three - phase voltage source with the line voltage of 3 8

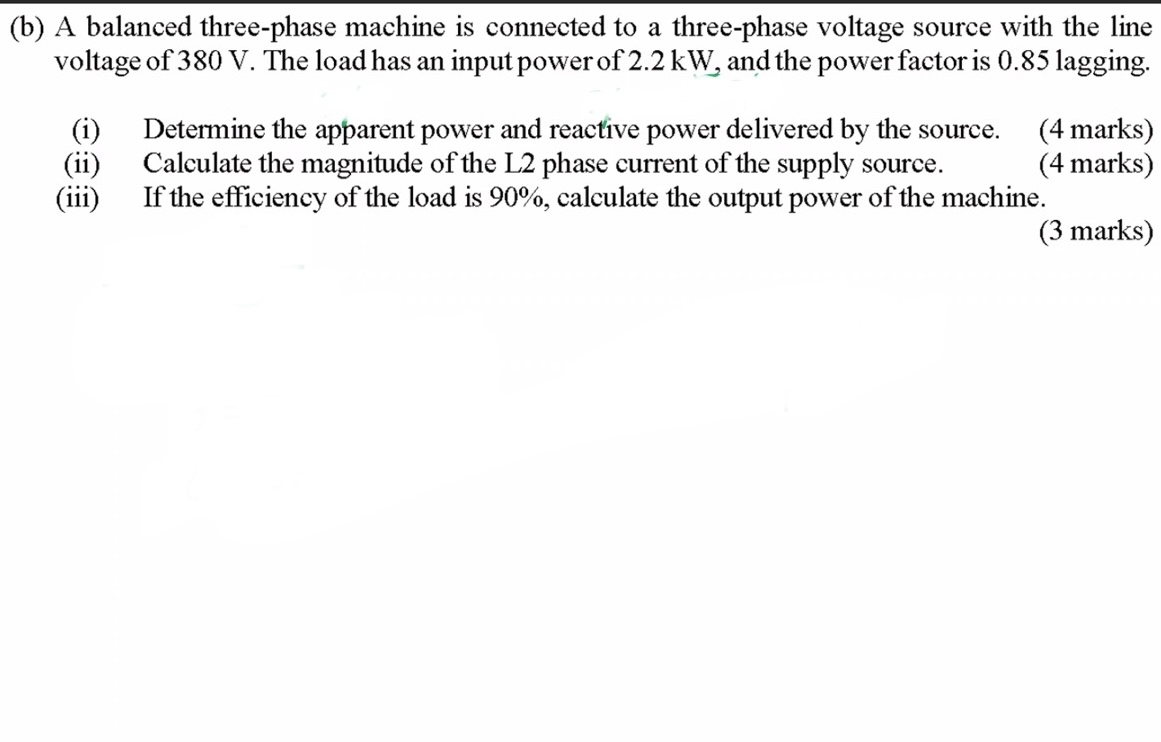

(b) A balanced three-phase machine is connected to a three-phase voltage source with the line voltage of 380 V . The load has an input power of 2.2 kW , and the power factor is 0.85 lagging.
(i) Determine the apparent power and reactive power delivered by the source. (4 marks)
(ii) Calculate the magnitude of the L2 phase current of the supply source.
(4 marks)
(iii) If the efficiency of the load is 90%, calculate the output power of the machine.
(3 marks)
( b ) A balanced three - phase machine is
