Question: ? b a r ( Determine ) the force in member C D by applying the method of sections. As well as determining the force

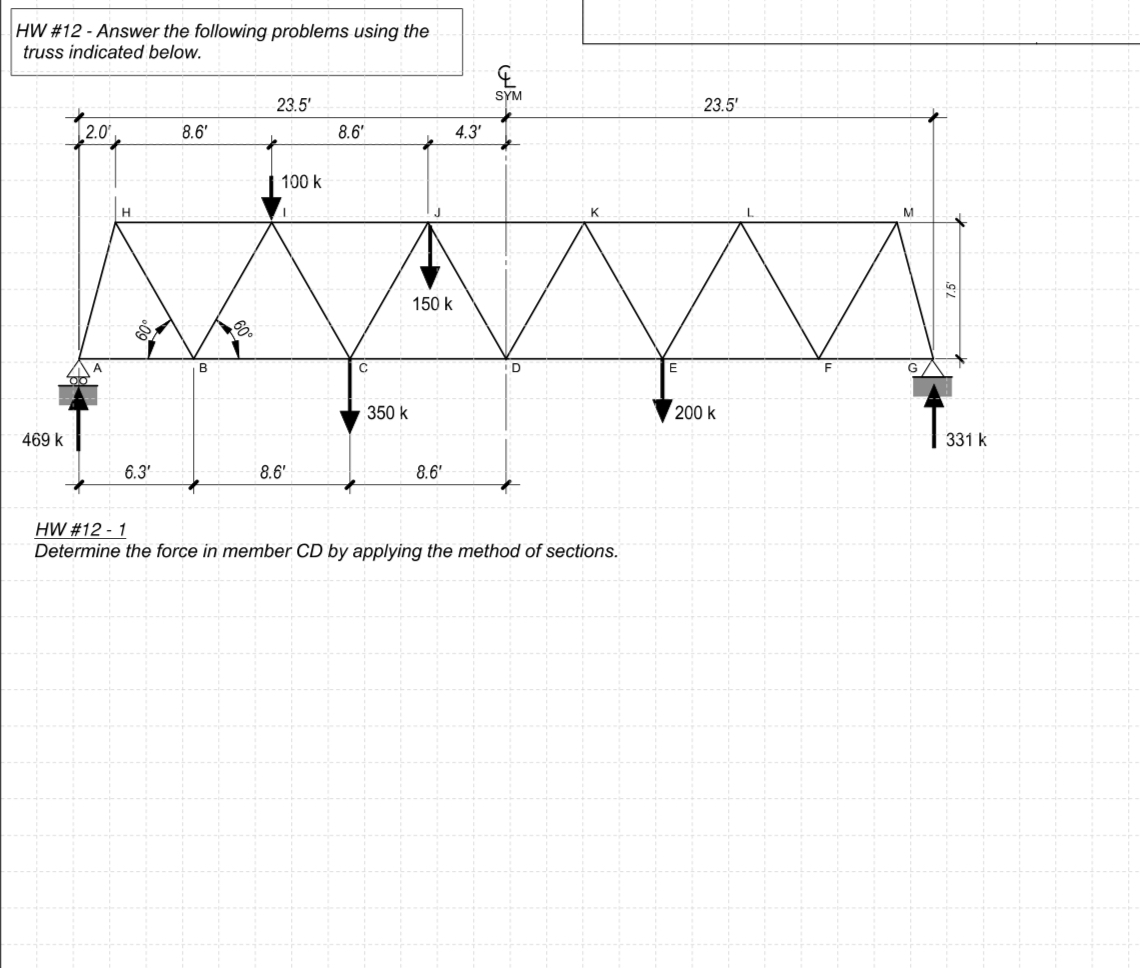

?bar( Determine ) the force in member CD by applying the method of sections. As well as determining the force in member CI by applying the method of section.
? b a r ( Determine ) the force in member C D by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

A 300N 30 (8) (43) F (42) u 60% (2/2) (8) E (2/2) (22) D 200N 45 45 450 G For the truss shown in the figure: (a) Determine the reactions at the supports (b) Determine the force in member BD using the...

Q:

Problem 5: Method of Sections d Inputs: d = 4 m A B D E F D M H 1 J K L a a 3 m (all horizontal members are this length) P = 45 kN P There is a pin at A and a roller at G. Using the method of...

Q:

( 3 0 PTS ) Given the truss shown in the figure below: a . Complete the overall free body diagram for the truss by drawing ALL the reaction forces at A and \ ( H \ ) . \ ( A \ ) is a roller and \ ( H...

Q:

QUESTION #4 - Trusses 10 kN -2 m- 5 kN 4 m G 45 H 2 m E E K B [20 marks] Figure 3 (Courtesy of Prentice Hall, Adapted) As shown in Figure 3, a truss is designed to support a staircase to move between...

Q:

Suppose that \ ( P _ { 1 } = 1 2 0 0 \ mathrm { lb } \ ) and \ ( P _ { 2 } = 1 6 0 0 \ mathrm { lb } \ ) . Suggestion: Use the sections shown in ( Figure 1 ) . Part A Determine the force in the...

Q:

4. Determine the force in member EL of the truss shown using the Method of Joints. H K L 5 m G B E 40 kN 40 kN 40 kN 40 kN 40 kN -6 at 5 m = 30 m- 5. Determine the force in the member DJ of the truss...
