B$.$ Consider a reservation Table for a pipeline with $5$ stages and inter$-$stage buffers. It takes $8$ clock cycles

to execute a task. Draw the pipeline structure and identify the category to which this pipeline belongs

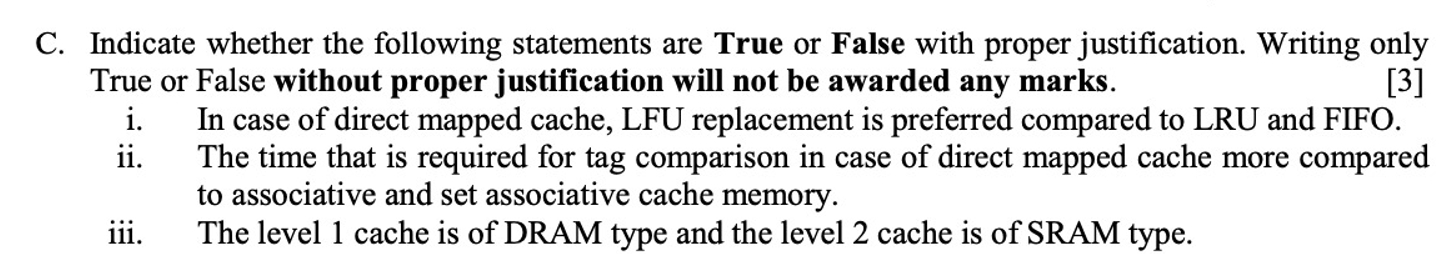

to$.$C$.$ Indicate whether the following statements are True or False with proper justification. Writing only

True or False without proper justification will not be awarded any marks.

i$.$ In case of direct mapped cache, LFU replacement is preferred compared to LRU and FIFO.

ii$.$ The time that is required for tag comparison in case of direct mapped cache more compared

to associative and set associative cache memory.

iii. The level $1$ cache is of DRAM type and the level $2$ cache is of SRAM type.
