Question: B ) Determine the internal normal force, shear force, and moment at point C in the simply supported beam. Point C is located just to

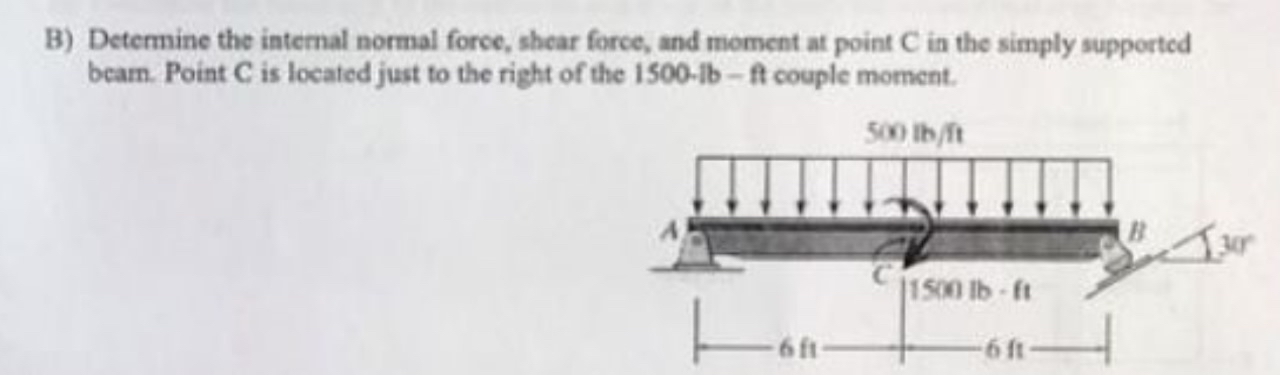

B) Determine the internal normal force, shear force, and moment at point C in the simply supported beam. Point C is located just to the right of the 1500-lb-ft couple moment.
B ) Determine the internal normal force, shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

The shaft is supported by a journal bearing at A and a thrust bearing at B. Determine the internal normal force, shear force, and moment at (a) Point C, which is just to the right of the bearing at...

Q:

Determine the internal normal force, shear force, and moment at point C in the simply supported beam. Point C is located just to the right of the 1500-lb ? ft couple moment. 500 Ib/ft 30 1500 lb ft...

Q:

Determine the internal normal force, shear force, and moment at point D which is located just to the right of the 50-Nforce. 50 N 50 N 50 N 50 N 30 30 30 30 30 600 mim

Q:

The beam has a weight w per unit length. Determine the internal normal force, shear force, and moment at point C due to itsweight. www

Q:

Determine the internal normal force, shear force, and moment at point C in the simply supportedbeam. 4 kN/m -3 m 3 m-

Q:

Determine the internal normal force, shear force, and moment at point C in the cantileverbeam. NO - wb B

Q:

Determine the internal normal force, shear force, and moment at point C in the double-overhangbeam. 3 kN/m B. -15 m--15 m--15m- -1.5 m-

Q:

Determine the internal normal force, shear force, and moment at points C and D in the simply supported beam. Point D is located just to the left of the 10-kN concentratedload. |10 kN 6 kN/m D. Fism-...

Q:

Determine the internal normal force, shear force, and moment at points C and D in the simply supported beam. Point D is located just to the left of the 5-kNforce. 5 kN 3 KN/m 3m- -1.5 m--15 m-

Q:
