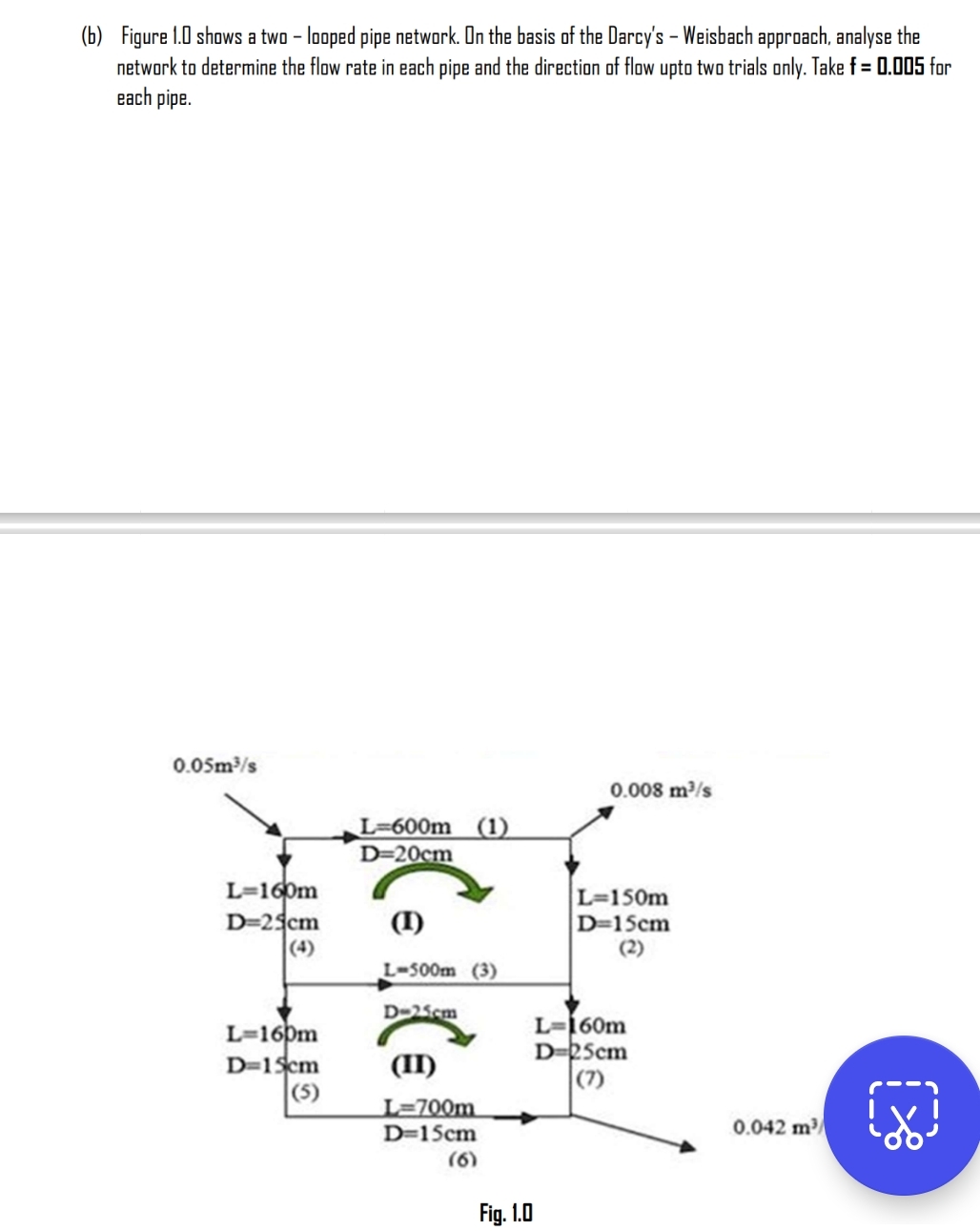

$($b$)$ Figure I.U shows a two $-$ looped pipe network. Un the basis of the Darcy's $-$ Weisbach approach, analyse the network to determine the flow rate in each pipe and the direction of flow upto two trials only. Take $f=0\mathrm{.}005$ for each pipe.

Fig. I. $1$
