Question: Based on the PIC18F Microchip language below. How many times does Loop 2 repeats? ORG 0000H CNT1 EQU 0x30 0x30 isthe location for CNT1 CLRF

Based on the PIC18F Microchip language below. How many times does Loop 2 repeats?

Based on the PIC18F Microchip language below. How many times does Loop

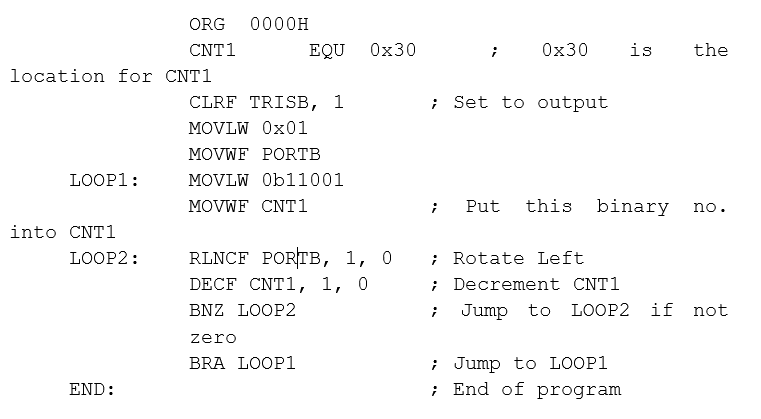

ORG 0000H CNT1 EQU 0x30 0x30 isthe location for CNT1 CLRF TRISB, 1 MOVLW 0x01 MOVWE PORTB MOVLW 0b11001 MOVWF CNT1 :Set to output LOOP1: Put this binary no. into CNT1 LOOP2:RLNCF PORTB, 1, 0 Rotate Left DECF CNT1, 1, 0 BNZ LOOP2 zero BRA LOOP! :Decrement CNT1 Jump to LOOP2 if not Jump to LOOP1 ; End of program END ORG 0000H CNT1 EQU 0x30 0x30 isthe location for CNT1 CLRF TRISB, 1 MOVLW 0x01 MOVWE PORTB MOVLW 0b11001 MOVWF CNT1 :Set to output LOOP1: Put this binary no. into CNT1 LOOP2:RLNCF PORTB, 1, 0 Rotate Left DECF CNT1, 1, 0 BNZ LOOP2 zero BRA LOOP! :Decrement CNT1 Jump to LOOP2 if not Jump to LOOP1 ; End of program END
