Based on the requirments and the giving data i provided write for me the whole needed equations for the WATER HEATING SYSTEM. After measuring your house$/$flat and drawing it in using AutoCAD, show a full design for a hot water heating system that can keep it warm in winter. You will need to change the schematic of the "Exposed walls construction" accordingly. If you feel like you can use an underfloor heating system that will be great and rewarded.

Your project should include the AutoCAD plan for the structure and wall, floors, and ceiling components as well as the schematics for all equivalent circuits. This project aims to compare the hot water systems capacity required for different constructions in the market. This project grades will not be fixed untilBased on the requirments and the giving information i provided write for me the equations for the WATER HEATING SYSTEM. measuring your house$/$flat and drawing it in using AutoCAD, show a full design for a hot water heating system that can keep it warm in winter.. You will need to change the schematic of the "Exposed walls construction" accordingly. If you feel like you can use an underfloor heating system that will be great and rewarded.

Your project should include the AutoCAD plan for the structure and wall, floors, and ceiling components as well as the schematics for all equivalent circuits. This project aims to compare the hot water systems capacity required for different constructions in the market. This project grades will not be fixed untilApartment Dimensions:

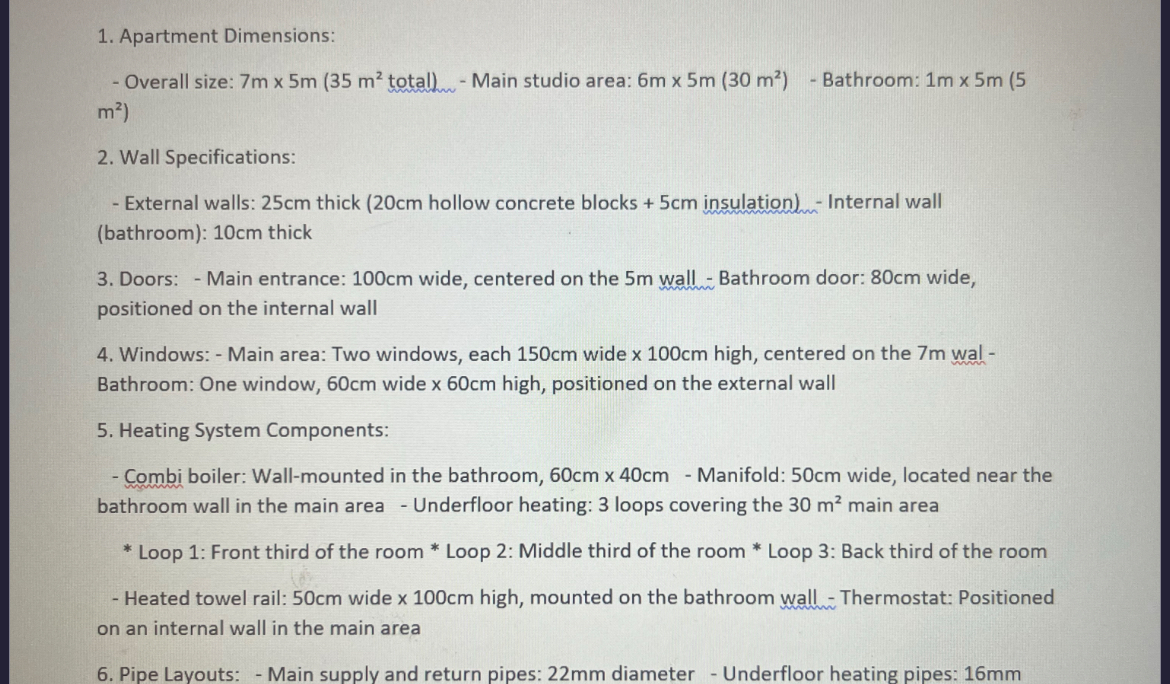

Overall size: total$)-$ Main studio area: $6m5m(30m^2)-$Bathroom: $m^2)$

Wall Specifications:

External walls: $25$ cm thick $(20$ cm hollow concrete blocks $+5$ cm insulation$)-$ Internal wall $($bathroom$)$: $10$ cm thick

Doors: $-$ Main entrance: $100$ cm wide, centered on the $5$ m wall $-$ Bathroom door: $80$ cm wide, positioned on the internal wall

Windows: $-$ Main area: Two windows, each $150$ cm wide $100cm$ high, centered on the $7$ m wal Bathroom: One window, $60$ cm wide $x60cm$ high, positioned on the external wall

Heating System Components:

Combi boiler: Wall$-$mounted in the bathroom, $60cm40cm-$ Manifold: $50$ cm wide, located near the bathroom wall in the main area $-$ Underfloor heating: $3$ loops covering the $30m^2$ main area

Loop $1$: Front third of the room $*$ Loop $2$: Middle third of the room $*$ Loop $3$: Back third of the room

Heated towel rail: $50$ cm wide $100cm$ high, mounted on the bathroom wall $-$ Thermostat: Positioned on an internal wall in the main area

Pipe Layouts: $-$ Main supply and return pipes: $22$ mm diameter $-$ Underfloor heating pipes: $16$ mm
