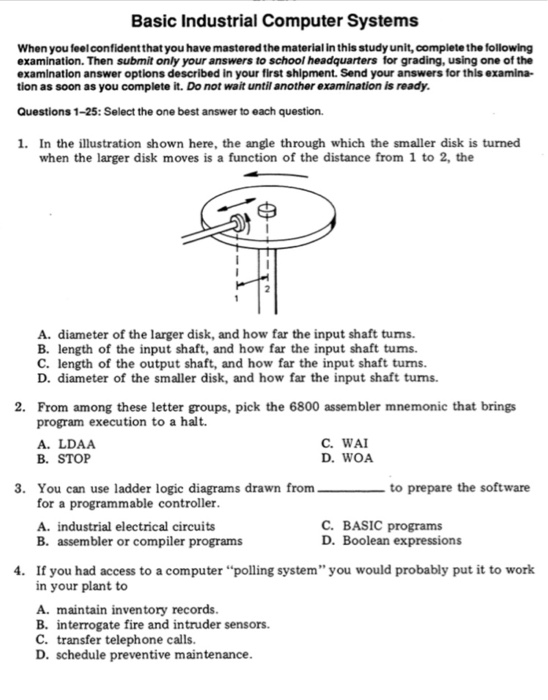

Basic Industrial Computer Systems When you feelconfident that you have mastered the material in this study unit, complete the following examination. Then submit only your answers to school headquarters for grading, using one of the examination answer options described in your first shipment. Send your answers for this examina- tion as soon as you complete it. Do not wait until another examination is ready Questions 1-25: Select the one best answer to each question. 1. In the illustration shown here, the angle through which the smaller disk is turned when the larger disk moves is a function of the distance from 1 to 2, the A. diameter of the larger disk, and how far the input shaft turns. B. length of the input shaft, and how far the input shaft tums. C. length of the output shaft, and how far the input shaft turns. D. diameter of the smaller disk, and how far the input shaft turns. 2. From among these letter groups, pick the 6800 assembler mnemonic that brings program execution to a halt. A. LDAA B. STOP C. WAI D. WOA 3. You can use ladder logic diagrams drawn from to prepare the software for a programmable controller A. industrial electrical circuits B. assembler or compiler programs C. BASIC programs D. Boolean expressions If you had access to a computer "polling system" you would probably put it to work in your plant to 4. A. maintain inventory records B. interrogate fire and intruder sensors. C. transfer telephone calls. D. schedule preventive maintenance
