Question: BCN 3251C, Structure Force System Practice Name (print): 3. A laborer is hoisting a weight, W=200 #, by pulling on a rope as shown.

BCN 3251C, Structure Force System Practice Name (print): 3. A laborer is hoisting a weight, W=200 #, by pulling on a rope as shown.

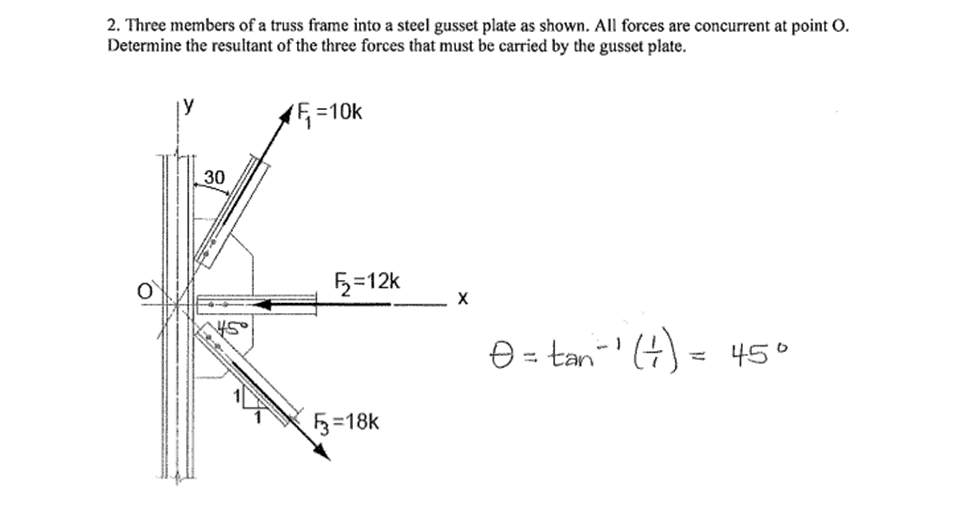

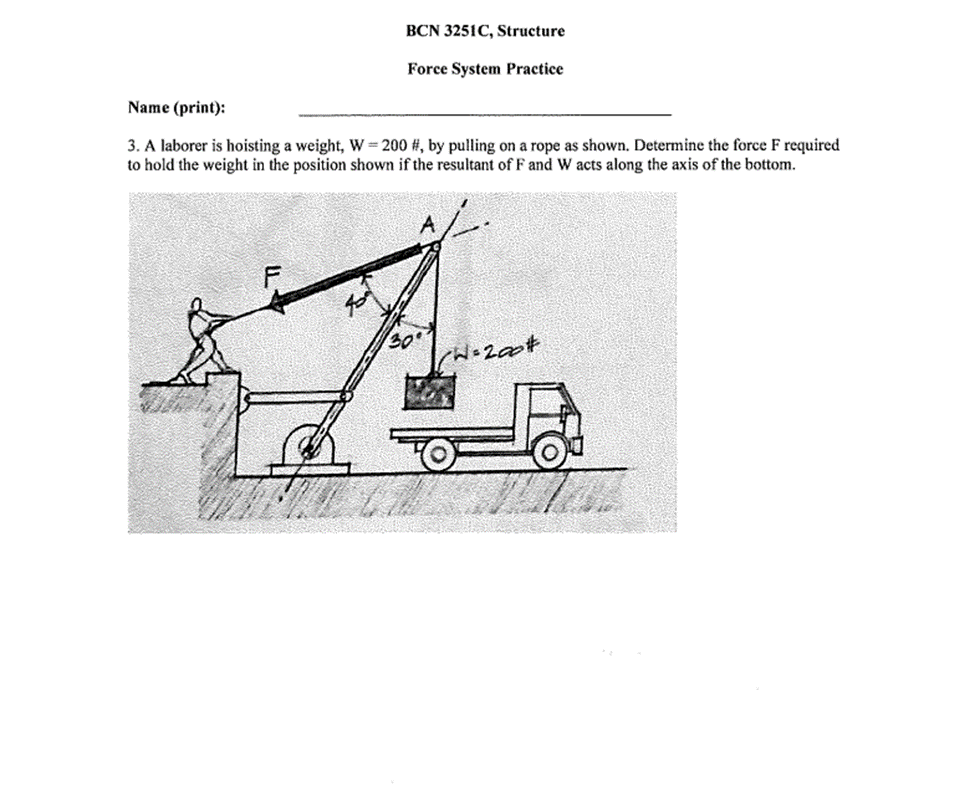

BCN 3251C, Structure Force System Practice Name (print): 3. A laborer is hoisting a weight, W=200 #, by pulling on a rope as shown. Determine the force F required to hold the weight in the position shown if the resultant of F and W acts along the axis of the bottom. F 30 W-200 2. Three members of a truss frame into a steel gusset plate as shown. All forces are concurrent at point O. Determine the resultant of the three forces that must be carried by the gusset plate. F =10k 451 2=12k F3=18k X - 0 = tan (+) = 45

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
