Beam cross section

$[$Problem adapted from $$ Kurt Gramoll CC BY NC$-$SA $4\mathrm{.}0]$

Please enter your ID number from your instructor and click to generate your

problem

Problem Statement

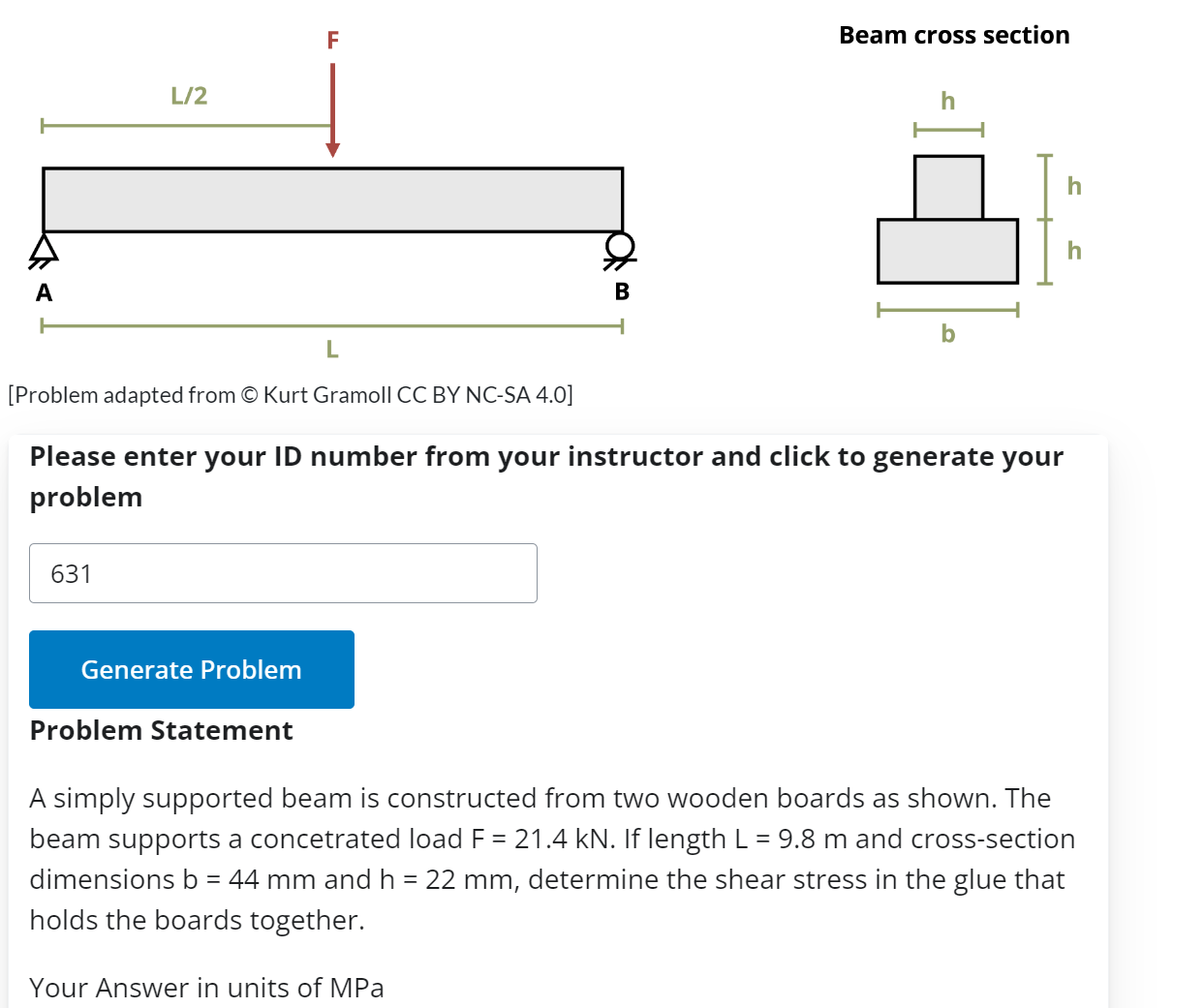

A simply supported beam is constructed from two wooden boards as shown. The

beam supports a concetrated load F$=21\mathrm{.}4$kN$.$ If length L$=9\mathrm{.}8$m and cross$-$section

dimensions b$=44$mm and h$=22$mm$,$ determine the shear stress in the glue that

holds the boards together.

Your Answer in units of MPa
